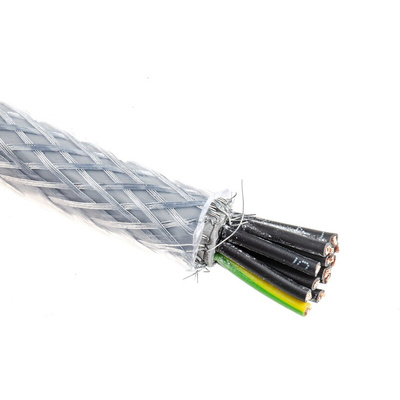

RS PRO Control Cable, 12 Cores, 1 mm², SY, Screened, 50m, Transparent PVC Sheath

RS PRO 12 Core SY Control Cable 1 mm², 50 m, Screened

Attach this RS PRO 12-core SY control cable into your equipment to regulate the electrical flow, even in systems dealing with high power levels. The cable is straightforward to install in awkward outlets as it's bendable and adjustable.
The zinc-plated finish on the wire braid prevents rusting. Damage is easily detectable through the transparent polyvinyl chloride (PVC) sheath so you can locate and fix issues.
The cable is commonly used in building and construction industries as well as in rail and transport. Its thick, hardwearing design keeps it running in damp or dry conditions.

Features and Benefits

• Armoured
• Polyvinyl chloride (PVC) insulation, bedding and sheath material
• Multicore cable shape
• Annealed copper conductor material
• 32 core strands of 0.2 mm
• Cross-sectional area of 1 mm²
• Earth cable
• Length of 50 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -15°C
• Minimum bend radius of 6 x diameter
• 12 cores
• Outer diameter of 14.5 mm
• Galvanised steel screen type
• Screened
• Transparent sheath colour
• Galvanised steel wire braid (GSWB) shielding
• Complies with BS EN 50525 standards
• Voltage rating of 300/500 V
