RS PRO Control Cable, 4 Cores, 4 mm², SY, Screened, 50m, Transparent PVC Sheath, Кабель

1964710
Производитель: RS PRO
Цена за 1 катушку (50 метров)
88557.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

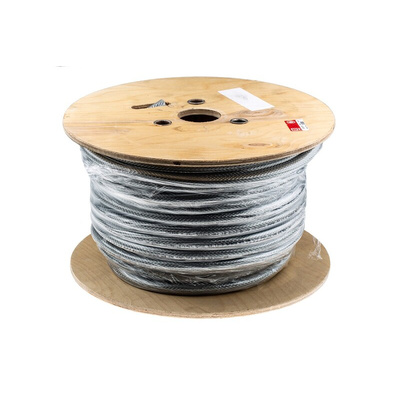

RS PRO 4 Core SY Control Cable 4 mm², 50 m, Screened

Use this four-core SY control cable from RS PRO to manage the electrical flow into your system in difficult set-ups. The wire is bendable to fit around corners and secure into your system.
Resistance to decay is enhanced by the zinc layer over the galvanised steel wire braid (GSWB). The polyvinyl chloride (PVC) sheath is transparent so you can see into the cable and look for connection issues without opening it up.
The cable's thick, layered design bears up in warehouse conditions where damp or excessive dryness could be an issue. It's commonly applied in assembly and production lines.

Features and Benefits

• Armoured
• Polyvinyl chloride (PVC) insulation, bedding and sheath material
• Multicore cable shape
• Annealed copper conductor material
• 56 core strands of 0.3 mm
• Cross-sectional area of 4 mm²
• Earth cable
• Length of 50 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -15°C
• Minimum bend radius of 6 x diameter
• Four cores
• Outer diameter of 14 mm
• Galvanised steel screen type
• Screened
• Transparent sheath colour
• Galvanised steel wire braid (GSWB) shielding
• Conforms to BS EN 50525 standards
• Voltage rating of 300/500 V
