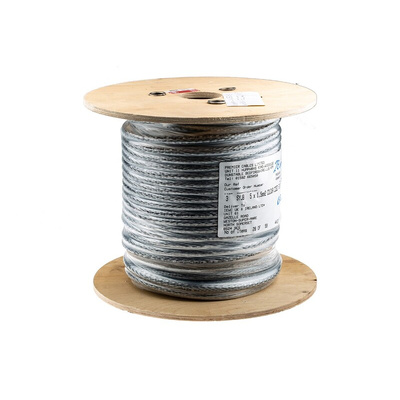

RS PRO Control Cable, 5 Cores, 1.5 mm², SY, Screened, 50m, Transparent PVC Sheath

RS PRO 5 Core SY Control Cable 1.5 mm², 50 m, Screened

This RS PRO five-core SY cable controls the electrical flow through your devices, keeping your system secure even when under high stress. The pliable cable secures into your system and adjusts to fit changing requirements.
Corrosion and rust are kept from developing by its zinc-coated galvanised steel wire braid (GSWB). The transparent polyvinyl chloride (PVC) sheath is designed to allow you to notice damage in the wire so you can open up and fix the cable with pinpoint accuracy when necessary.
Install this cable in wet or dry areas and its tiered design will keep the connection secure. It's commonly used in the transmission, automation and process control industries.

Features and Benefits

• Armoured
• Polyvinyl chloride (PVC) insulation, bedding and sheath material
• Multicore cable shape
• Annealed copper conductor material
• 30 core strands of 0.25 mm
• Cross-sectional area of 1.5 mm²
• Earth cable
• Length of 50 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -15°C
• Minimum bend radius of 6 x diameter
• Five cores
• Outer diameter of 12.3 mm
• Galvanised steel screen type
• Screened
• Transparent sheath colour
• Galvanised steel wire braid (GSWB) shielding
• Complies with BS EN 50525 standards
• Voltage rating of 300/500 V
