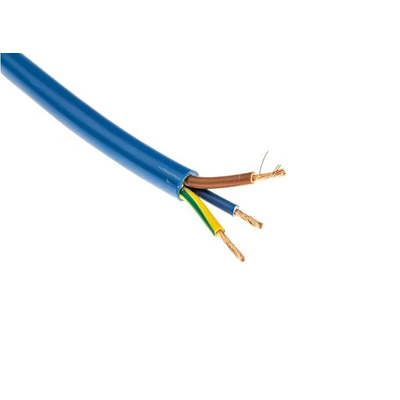

RS PRO 3 Core Power Cable, 1.5 mm², 100m, Blue PVC Sheath, Flexible Multicore, 300/500 V

RS PRO Flexible Multicore Electrical Wiring Cable, 3 Cores, Blue, 100 m, 1.5 mm²

This RS PRO flexible multicore cable is ideal for wiring plain medium-duty domestic or light industrial appliances. The three-wire cores are made of annealed copper, resulting in a highly flexible cable that can twist and bend without breaking. This makes for a durable wire that can withstand a lot of wear and tear.
The cable cores are sheathed in colour-coded polyvinyl chloride (PVC) for easy identification. The outer sheath is also PVC, which is flame-retardant for increased safety. The material also protects the wire from chemical damage and abrasion, keeping your cable intact and operating for longer.
This wire is designed for use in low-voltage applications with a moderate amount of mechanical stress, such as domestic appliances. You'll find it used in computers, heaters and household cooking equipment.

Features and Benefits

• Flexible multicore cable type
• Annealed copper conductor material
• Cross-sectional area of 1.5 mm²
• H05VV-F harmonised code for flexible cables for small appliances
• Length of 100 m
• Operating temperature range of -15°C to +70°C
• Three cores
• Outer diameter of 11.4 mm
• Unscreened
• Blue sheath colour
• Polyvinyl chloride (PVC) sheath material
• Meets BS EN 50525 standards for power cables for domestic and industrial appliances
• Voltage rating of 300 V, 500 V

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021

RS PRO Datasheet
