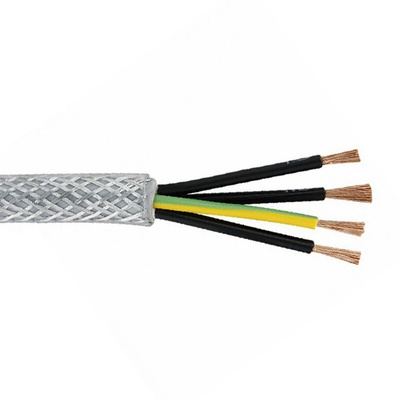

RS PRO Control Cable, 4 Cores, 2.5 mm², SY, Screened, 50m, Transparent PVC Sheath

RS PRO 4 Core SY Control Cable 2.5 mm², 50 m, Screened

This four-core SY control cable from RS PRO manages electrical flows to keep them in working order, even when under strain. Adjust the flexible cable easily by bending it into shape to fit your system requirements.
The galvanised steel material of the wire braid is corrosion resistant to stop it wearing out due to rust. Sheathed in transparent polyvinyl chloride (PVC), you’ll find areas of damage in the wire with a simple scan of its surface.
Contact with leaks or the sun that could cause connection damage is repelled by the cable's thick and durable design. You'll commonly see this product being used in the building and construction industry.

Features and Benefits

• Armoured
• Polyvinyl chloride (PVC) insulation, bedding and sheath material
• Multicore cable shape
• Annealed copper conductor material
• 50 core strands of 0.25 mm
• Cross-sectional area of 2.5 mm²
• Earth cable
• Length of 50 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -15°C
• Minimum bend radius of 6 x diameter
• Four cores
• Outer diameter of 12.5 mm
• Galvanised steel screen type
• Screened
• Transparent sheath colour
• Galvanised steel wire braid (GSWB) shielding
• Conforms to BS EN 50525 standards
• Voltage rating of 300/500 V

Applications

These RS PRO control cables are a fantastic option as they are so versatile, control cables are used most frequently in control devices such as machine tools, conveyor or assembly lines, transporting equipment, production lines and construction of industrial plants.
