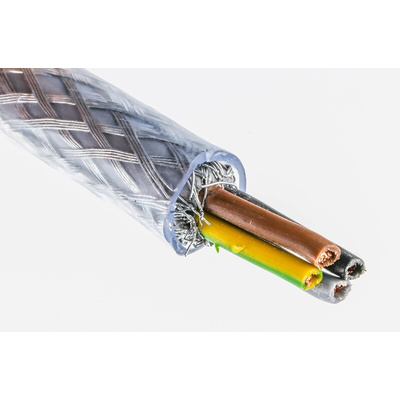

RS PRO Control Cable, 4 Cores, 1.5 mm², SY, Screened, 50m, Transparent PVC Sheath

RS PRO 4 Core SY Control Cable 1.5 mm², 50 m, Screened

Difficult power set-ups are kept regulated and secure with this RS PRO four-core SY control cable. It twists to fit the space your system is in, allowing you to alter it later without having to disconnect.
The cable blocks rust development with a galvanised steel wire braid (GSWB). Look through the transparent polyvinyl chloride (PVC) sheath to find any corrosion or abrasion in need of repair.
Internal systems threatened by damp or arid conditions are safe with this heavy-duty cable. It's often used for process automation such as conveyors, instrumentation, assembly and production lines.

Features and Benefits

• Armoured
• Polyvinyl chloride (PVC) insulation, bedding and sheath material
• Multicore cable shape
• Annealed copper conductor material
• 30 core strands of 0.25 mm
• Cross-sectional area of 1.5 mm²
• Earth cable
• Length of 50 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -15°C
• Minimum bend radius of 6 x diameter
• Four cores
• Outer diameter of 11.5 mm
• Galvanised steel screen type
• Screened
• Transparent sheath colour
• Galvanised steel wire braid (GSWB) shielding
• Complies with BS EN 50525 standards
• Voltage rating of 300/500 V
