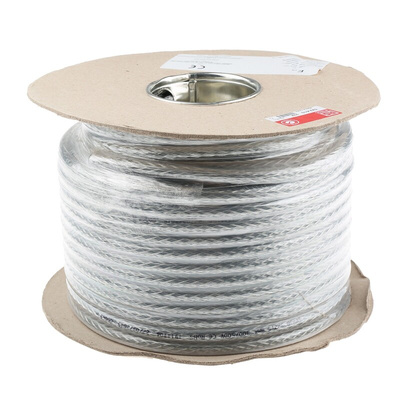

RS PRO Control Cable, 3 Cores, 2.5 mm², SY, Screened, 50m, Transparent PVC Sheath

RS PRO 3 Core SY Control Cable 2.5 mm², 50 m, Screened

The RS PRO SY series cables are designed to help you interconnect assembly and production line equipment, conveyors and computer units. This three-core cable is screened with galvanised steel wire braid to shield the conductors from electromagnetic noise, minimise cross-talk between conductors and prevent radiation from the cable.

The conductors are made from annealed copper, which offers flexibility and superior conductivity. The cable is available in lengths of 50 metres, has a cross-sectional area of 2.5 mm and an outer diameter of 11.7 mm.

Having been exhaustively tested, this cable meets international standards as an effective Class 5 flexible conductor (BS EN 60228) that's safely insulated with PVC (BS EN 50363) and manufactured to ensure safety and reliability (BS EN 50525-2-11:2011).

Cables like these are commonly used in construction, rail and transport industries as well as for tasks including transmission and automation and process control.

Features and Benefits

• Interconnecting cable
• Three-core cable
• 50-metre reel
• Screened with galvanised steel braid to shield from electrical interference
• Stranded cable with PVC sheath
• Voltage rating of 300 V, 500 V
• Outer diameter of 11.7 mm
• Operating temperature range of -15˚C to +70˚C
• Minimum bend radius of 6x diameter

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Conductor : plain annealed copper class 5 to BS EN 60228
Insulation: PVC Type TI2 to BS EN 50363-3
Bedding: PVC Type TM2 to B EN 50363-4-1
Braiding: GSWB (Galvanised Steel Wire Braid)
Sheath: Clear PVC Type TM2 to B EN 50363-4-1
Manufactured generally to BS EN 50525-2-11:2011
