RS PRO Polypropylene Film Capacitor, 440V ac, ±10%, 6μF, Screw Mount, Конденсатор

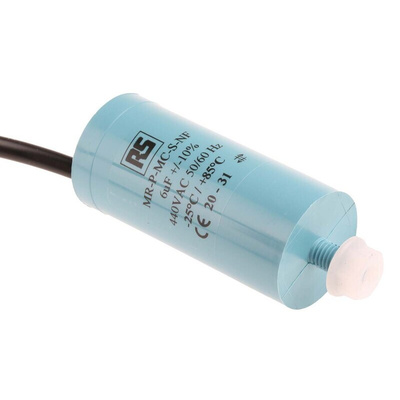

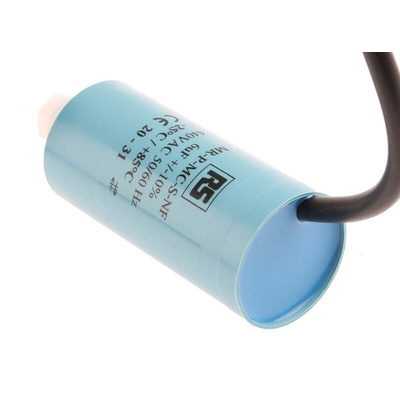

RS PRO 6 μF Polypropylene Capacitor PP 440 V AC ±10% Tolerance Screw Mount

Use this RS PRO polypropylene film capacitator with single-phase induction motors in AC voltage. Capacitators such as these help spin electrical motors by providing a jolt of stored energy to the motor once it has started.

This polypropylene capacitator (PP) contains two very thin layers of aluminium film, which are covered in a polyurethane flame-retardant resin. This film allows it to be self-healing through weak spots, which absorb currents if a surge occurs. That makes the metallised surface melt and create a vapour which insulates the weak point and lets the capacitator continue working as usual. It's designed for screw-mounting and has a capacitance of 6 μF.

Capacitators like this one are commonly found in the motors of domestic electrical appliances. This particular model is British, European and ISO 9001-2008 quality approved.

Features and Benefits

• Screw-mounting PP (polypropylene) capacitor
• Dissipation factor of 0.15%
• Capacitance of 6 μF
• PLYP dielectric type
• Length of 75 mm
• Diameter of 35 mm
• Operating temperature range of -25°C to +85°C
• BS, EN ISO 9001-2008 approved
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
