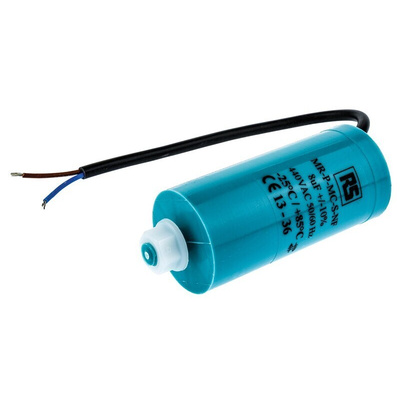

RS PRO Polypropylene Film Capacitor, 440V ac, ±10%, 8μF, Screw Mount, Конденсатор

RS PRO 8 μF Polypropylene Capacitor PP 440 V AC ±10% Tolerance Screw Mount

Need a capacitor that's well-suited for starting and running motors in a wide range of applications? Choose this polypropylene capacitor from RS PRO. It's ideal for use as an AC capacitor for electrical distribution. You can also use it in domestic appliance pumps and high-power and high-frequency systems, such as induction heaters.


This capacitor has a low risk of flammable combustion thanks to the non-flammable plastic material. It can also self-correct, as it can clear fault areas caused by short-circuits after breakdowns.


This product contains only minimal amounts of any harmful materials and so complies with Restriction of Hazardous Substances (RoHS) standards. It also meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, meaning there's a low risk of hazards from electrostatic discharge (ESD).

Features and Benefits

• Capacitance of 8 μF


• Polypropylene (PP) dielectric material family


• Dimensions of 35 (diameter) x 75 mm (length)


• Dissipation factor of less than 0.15%


• Maximum operating temperature of +85°C


• Minimum operating temperature of -25°C


• Screw mounting type


• Tolerance of ±10%


• Voltage of 440 V AC

Approvals

7777

RS Pro Datasheet
