RS PRO Polypropylene Film Capacitor, 440V ac, ±10%, 10μF, Screw Mount, Конденсатор

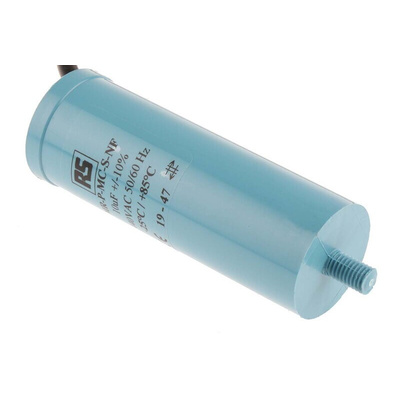

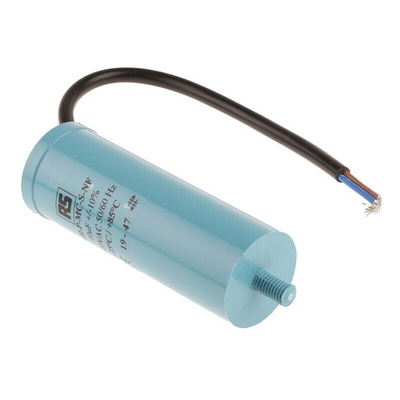

RS PRO 10 μF Polypropylene Capacitor PP 440 V AC ±10% Tolerance Screw Mount

Need a polypropylene capacitor for use with AC voltage? Turn to this unit from RS PRO. Capacitors like this one are often used in high-power systems such as induction heaters and AC capacitors for electrical distribution, as well as in domestic appliance pumps.


This type of capacitor is motor-run, so you can provide power to a motor to start and run the motors in your electrical setups. It also has a self-correcting feature, which means it can clear a fault where a breakdown occurs. It's encapsulated in a flame-retardant case, which decreases the risk of fire and makes it suitable for use at temperatures of up to +85°C.


The capacitor complies with Restriction of Hazardous Substances (RoHS) requirements, so it contains only limited amounts of any harmful materials. It also meets electrostatic discharge (ESD) criteria and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, so risk of ESD is minimised.

Features and Benefits

• Capacitance of 10 μF


• Polypropylene (PP) dielectric material family


• Dimensions of 35 (diameter) x 98 mm (length)


• Dissipation factor of less than 0.15%


• Maximum operating temperature of +85°C


• Minimum operating temperature of -25°C


• Screw mounting type


• Tolerance of ±10%


• Voltage of 440 V AC

Approvals

7777

RS Pro Datasheet
