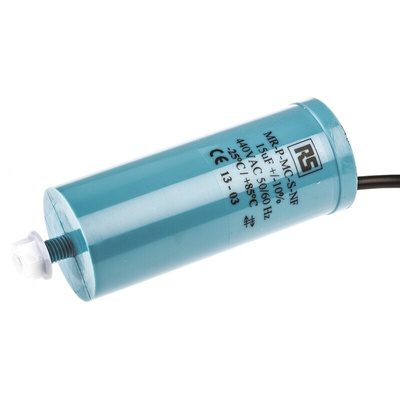

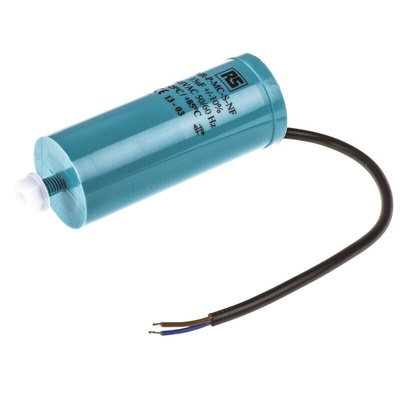

RS PRO Polypropylene Film Capacitor, 440V ac, ±10%, 15μF, Screw Mount, Конденсатор

RS PRO 15 μF Polypropylene Capacitor PP 440 V AC ±10% Tolerance Screw Mount

Use this polypropylene capacitor from RS PRO with AC power to start and operate motors in your applications. It's commonly used in pumps in household and office appliances, as well as in high-frequency, high-power applications like induction heaters and electrical distribution capacitors.


The capacitor has self-correcting properties, which means it can clear a fault region where a breakdown has occurred. The casing is constructed of self-extinguishing plastic, so it keeps your working environment safe from fire risks.


As the product complies with the Restriction of Hazardous Chemicals (RoHS) regulations, it includes only trace quantities of potentially hazardous substances. It has also been tested for electrostatic discharge (EDS) and meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring that the risk of discharge is kept to a minimum.

Features and Benefits

• Capacitance of 15 μF


• Polypropylene (PP) dielectric material family


• Dimensions of 40 (diameter) x 98 mm (length)


• Dissipation factor of less than 0.15%


• Maximum operating temperature of +85°C


• Minimum operating temperature of -25°C


• Screw mounting type


• Tolerance of ±10%


• Voltage of 440 V AC

Approvals

7777

RS Pro Datasheet
