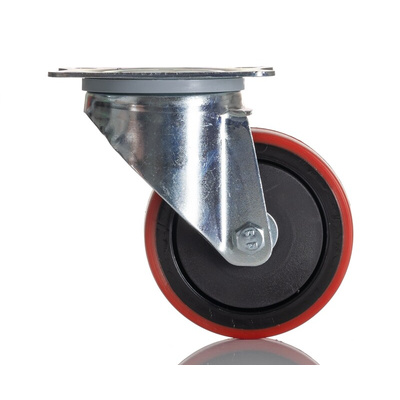

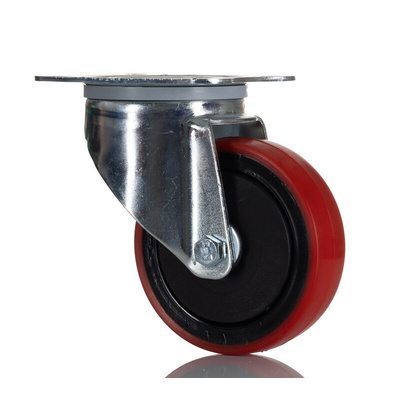

RS PRO Swivel Castor Wheel, 110kg Capacity, 100mm Wheel

RS PRO Swivel Castor, 110 kg Load Capacity, 100 mm Wheel Diameter

You can attach this RS PRO swivel castor to your trolley to help you move heavy and awkwardly shaped loads more easily. The 100 mm diameter wheel is designed for use with medium-duty loads of up to 110 kg. It's suitable for both domestic and commercial settings, from garages to industrial plants and warehouses.
As a swivel castor, it's capable of moving in any direction. The main body of this component is zinc-plated for added strength and protection against day-to-day impact. It's also designed to resist corrosion and tarnishing, all of which means it will last longer.
This reliable component is designed to create low levels of friction, which means it's less effort to push your load. The swivel types are fitted with a double ball race to ensure easy steering. You'll find it attached to hospital beds, workbenches and engineering equipment.

Features and Benefits

• Low-friction features
• Fixing centres of 80 x 60 mm
• Fixing hole size of 8.4 mm
• Fixing plate dimensions of 100 x 80 mm
• Single-ball race hub bearing type
• No brake
• Load capacity of 110 kg
• Plate mounting type
• Four fixing holes
• Swivel rotation
• Polyurethane (PUR) tyre material
• Medium-duty weight class
• Wheel diameter of 100 mm
• Wheel width of 30 mm
• Overall height of 122 mm

Datasheet
