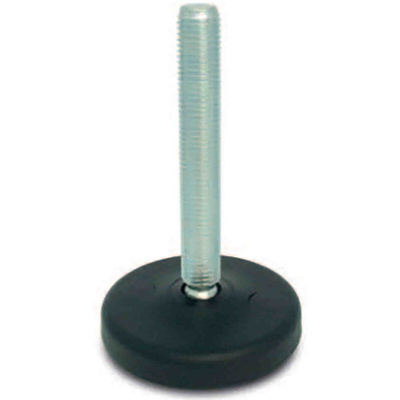

RS PRO M10 Adjustable Foot, 1000kg Static Load Capacity 30° Tilt Angle

RS PRO Adjustable Height Mount M10 100 mm, 83 mm Dia., Mild Steel 1000 kg Static Load Capacity 30° Tilt Angle

These adjustable feet from RS PRO are perfect for supporting your equipment, holding it off the surface and keeping it level and secure. They will also absorb vibration, either from the surface or the unit they are attached to, preventing it from being transmitted to or from other systems.
The threaded design is quick and easy to fit to any device which requires support and can be adjusted simply by rotating the foot. Once set to the right length, the reinforced base will hold its position, supporting a load of up to 1000 kg.
These feet are suitable for use in food processing plants and are ideal for supporting packing and conveyor systems. The articulation in the joint above the foot ensures that the foot will have good contact with the surface underneath, even if it's not flat. The M10 thread will fit many existing systems without the need for modification or adaptors.

Features and Benefits

• Mild steel base material
• Diameter of 83 mm
• Maximum adjustment height of 35 mm
• Minimum adjustment height of 95 mm
• Overall height of 130 mm
• Static load capacity of 1000 kg
• Thread length of 100 mm
• M10 thread size
• Tilt angle of 30º
