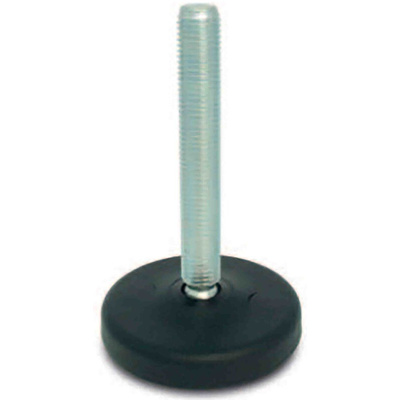

RS PRO M12 Adjustable Foot, 1300kg Static Load Capacity 30° Tilt Angle

RS PRO Adjustable Height Mount M12 150 mm, 83 mm Dia., Mild Steel 1300 kg Static Load Capacity 30° Tilt Angle

Use these adjustable feet from RS PRO to support equipment and ensure that it's held flat and level. They will also absorb any vibration, both from the unit they're supporting and from the ground underneath, preventing damage from shaking.
As the foot is attached to a threaded rod, the height of the system can be easily adjusted by rotating the foot, screwing it further in or out of the unit it's attached to. The reinforced base can safely hold a load of up to 1300 kg, making it suitable for a wide range of heavy industrial applications.
These feet are designed for use with food processing units, conveyors and packing systems and as such are easy to clean. With 30º of articulation, you can be confident that the feet will maintain a good grip on the ground, even if it's uneven.

Features and Benefits

• Mild steel base material
• Diameter of 83 mm
• Maximum adjustment height of 45 mm
• Minimum adjustment height of 115 mm
• Overall height of 180 mm
• Static load capacity of 1300 kg
• Thread length of 150 mm
• M12 thread size
• Tilt angle of 30 º

RS PRO Datasheet
