RS PRO M14 Stainless Steel Adjustable Foot, 400kg Static Load Capacity 10° Tilt Angle

RS PRO Adjustable Height Mount M14 100 mm, 50 mm Dia. Stainless Steel, Stainless Steel 400 kg Static Load Capacity 10°

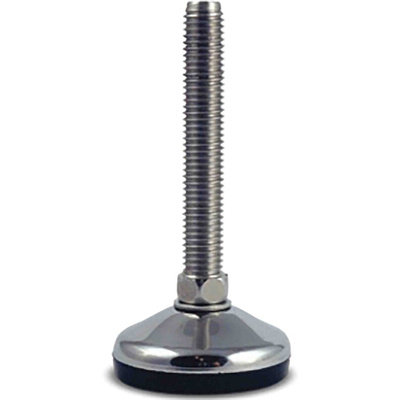

These adjustable feet from RS PRO can be used to support equipment, keeping it away from the surface underneath and holding it level. The space underneath can then be used to run cables or pipes, or simply left open to make cleaning easier.
The feet are attached to threaded rods, making fitting and adjusting them as simple as twisting the feet to screw them in or out. The stainless steel and oil-resistant rubber design ensures they can be cleaned. The 400 kg load rating and rubber grip give you confidence that your equipment will be held safely and securely. The articulated joint at the base of the foot allows the mount to maintain a good grip even on bumpy or uneven floors.
These feet are designed for use in cleanroom and food-safe applications. The M14 thread will fit easily into existing systems.

Features and Benefits

• Stainless steel base material
• Stainless steel foot material
• Diameter of 50 mm
• Maximum adjustment height of 45 mm
• Minimum adjustment height of 119 mm
• Overall height of 129 mm
• Static load capacity of 400 kg
• Thread length of 100 mm
• M14 thread size
• Tilt angle of 10º
