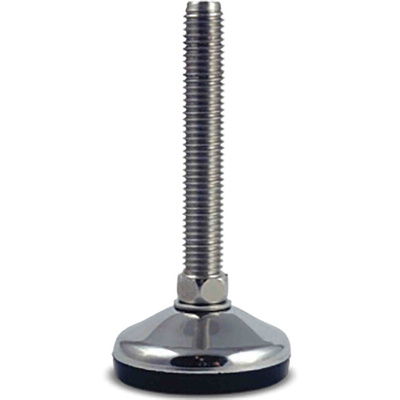

RS PRO M12 Stainless Steel Adjustable Foot, 700kg Static Load Capacity 10° Tilt Angle

RS PRO Adjustable Height Mount M12 150 mm, 60 mm Dia. Stainless Steel, Stainless Steel 700 kg Static Load Capacity 10°

This adjustable height mount from RS PRO allows you to raise a piece of equipment off the ground and ensure that it's kept level. It's resistant to vibration, so it will hold your equipment securely in place.
A simple threaded design allows you to adjust the height of the foot with a simple twisting motion. As it can accommodate a static load of up to 700 kg, you can be confident that your heavy gear is well-supported. There's also a vulcanised rubber base to prevent slipping and ensure a large contact area with the ground for stability.
As this mount is made from stainless steel and oil-resistant rubber, it's easy to clean and is ideal for use in food-safe and cleanroom environments. You'll find it used for supporting food processing units, packing systems and conveyor systems.

Features and Benefits

• Stainless steel base material
• Stainless steel foot material
• Diameter of 60 mm
• Overall height of 182 mm
• Maximum adjustment height of 45 mm
• Minimum adjustment height of 115 mm
• Static load capacity of 700 kg
• Thread length of 150 mm
• M12 thread size
• Tilt angle of 10º

RS PRO Datasheet
