RS PRO Ceramic Heating Element, 245mm, 400 W, 230 V ac, Керамический нагревательный элемент

RS PRO Ceramic Heating Element, 245 mm, 400 W, 230 V AC

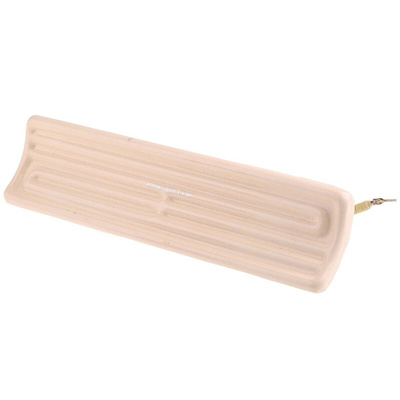

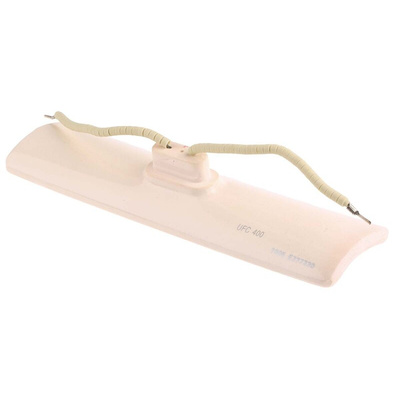

This curved ceramic heating element from RS PRO is suitable for curing both coats of paint and plastic weldings. Because it can convert up to 96% of the input power into heat, it's also highly energy efficient.

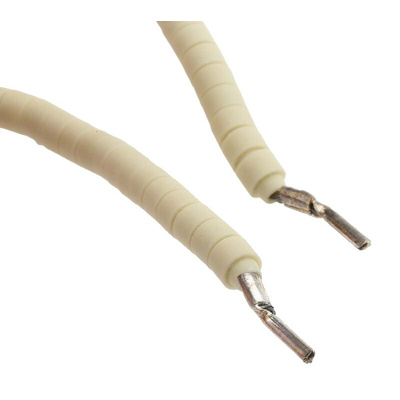

The wire in this heating element is embedded inside the heater itself. It creates long-wave infrared in parallel rays, while the special curved design focuses heat exactly where you need it for a very efficient curing process. The glazed ceramic construction helps protect the unit from corrosion.

This long-lasting heating element has a working life of between 5,000 and 10,000 hours. It's power rated at 400 W, with a supply voltage of 230 V AC. Heaters of this kind are typically used in manufacturing applications.

Part of the reliable RS PRO range, this product has been extensively tested for quality and safety.

Features and Benefits

• Curved ceramic heating element
• Power rating of 400 W
• Supply voltage of 230 V
• Length of 245 mm
• Width of 60 mm
• Thickness of 31 mm
• Maximum surface temperature of +700°C
• Working life of 5000-10,000 hours
• Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
