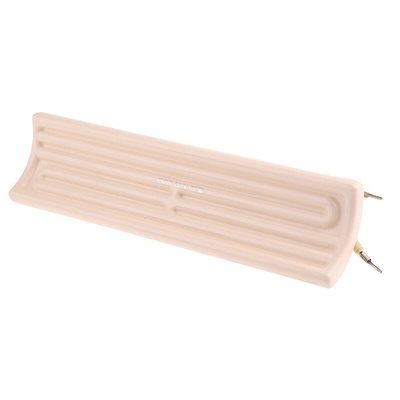

RS PRO Ceramic Heating Element, 245mm, 650 W, 230 V ac, Керамический нагревательный элемент

RS PRO Ceramic Heating Element, 245 mm, 650 W, 230 V AC

Use this curved ceramic heating element to cure plastic weldings and coats of paint. It's well-suited to longwave radiation, heating and drying in a wide range of manufacturing settings.

This heating element can convert up to 96% of the input power into heat, so it's extremely energy efficient. It has a maximum operating temperature of +700°C and a supply voltage of 230 V AC. The wire, which is embedded into the heater, can generate long-wave infrared in parallel rays, while the concave shape improves efficiency by focusing heat into the desired spot.

The glazed ceramic design helps to protect the element from corrosion. The unit is extremely durable, with a working life of between 5,000 and 10,000 hours.

This quality RS PRO product has been extensively tested for consistency. It complies with the RoHS Directive for minimal content of restricted hazardous substances.

Features and Benefits

• Curved ceramic heating element
• Power rating of 650 W
• Supply voltage of 230 V
• Length of 245 mm
• Width of 60 mm
• Thickness of 31 mm
• Maximum surface temperature of +700°C
• Working life of 5000-10,000 hours
• Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
