CC79R-2024-01-L, Samtec CC69R Series Female Crimp Terminal, 24AWG Max

Samtec Crimp Terminal, Gold-Plated Phosphor Bronze Contacts, 24 to 20AWG Wire Size - CC79R Series - CC79R-2024-01-L

For a reliable wire termination to your PCB, turn to this robust crimp terminal from Samtec. Simply compress it onto the end of a wire for a durable discrete wiring connection. Thanks to its highly conductive gold-plated phosphor bronze contacts and hardwearing metal body, you can expect consistent performance after repeated connections and disconnections. This female socket-style crimp terminal latches into place on Samtec's male IPD1 series pin-style housing, where a retaining clip ensures a secure electrical link.

Features & Benefits

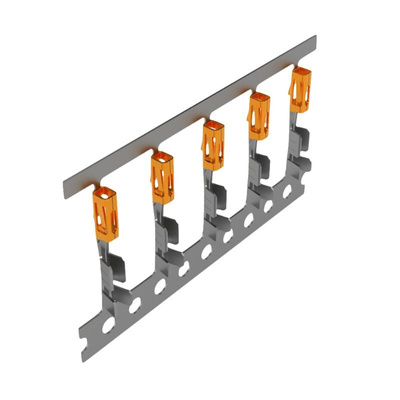

• Supplied on a tape of 50, convenient for multiple jobs
• Widely compatible, as it works with any wire between 24 and 20 AWG
• Broad operating temperature range of -55°C to +125°C to suit harsh environments

Applications

• Industrial automation
• Robotics systems
• Instrumentation and measurement

What tool do I need to install this crimp terminal?

You need a crimping tool to attach this component to the end of a wire. A hand crimper such as (180-1245), applicator or extractor tool helps to speed up installation or disassembly.

Datasheet - CC79R-2024-01-L
