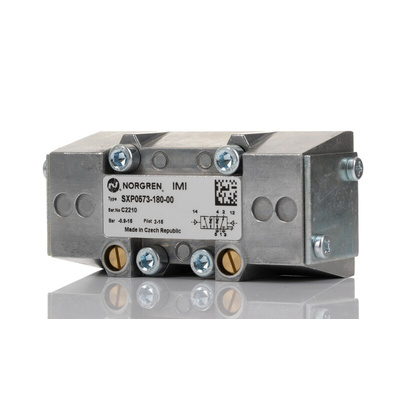

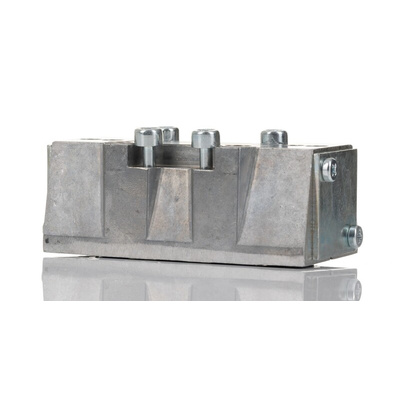

Norgren 5/2 Pneumatic Solenoid Valve - Pilot/Pilot SXP Series, SXP0573-180-00B, Клапан

IMI Norgren Pneumatic Solenoid Valve, 16 Bar Maximum Operating Pressure, 5/2 Function - SXP Series - SXP0573-180-00B

Need a reliable way to control the to-and-fro of airflow in your system? Use IMI Norgren's pneumatic solenoid valve. It has an impulse-actuated bi-stable valve with detent mechanism. This makes it highly reliable, as no continuous energy supply is needed to maintain its valve position. An override lets you manually open or close the valve whenever you need to, so troubleshooting and tests can be carried out safely. Thanks to a glandless design and PTFE coating, you can be sure this is a rugged and low-maintenance option.

Features & Benefits

• Maximum operating pressure of 16 bar to work with high-power machines
• IP65 rating means it's dust-tight and resistant to water jets from any angle
• Wide operating temperature range between -15°C and +80°C to handle harsh conditions

Applications

• Materials handling
• Packaging systems
• Machine tools
• Industrial control

How do I mount this pneumatic solenoid valve?

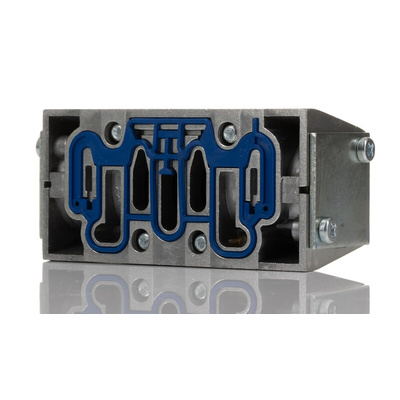

It mounts on an ISO size 1 sub base, such as a CQM series block (218-0587), to give you side and bottom porting options. The universal ISO sizing means it's swappable with other standard-sized valves for simple system changes.

ISO

ISO 1 PRESS REG-PORT 4 Data Sheet

ISO*STAR (SXE, SXP) 5/2 & 5/3 Series Datasheet

Instruction Sheet - SXP0573-180-00B
