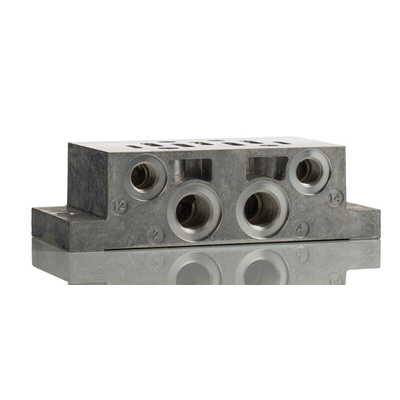

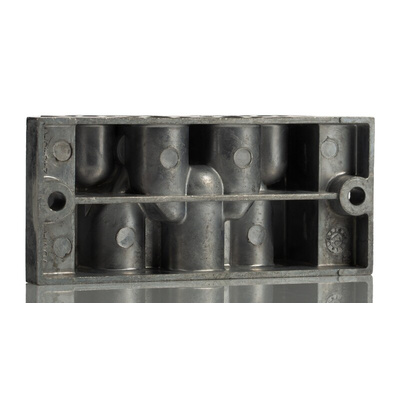

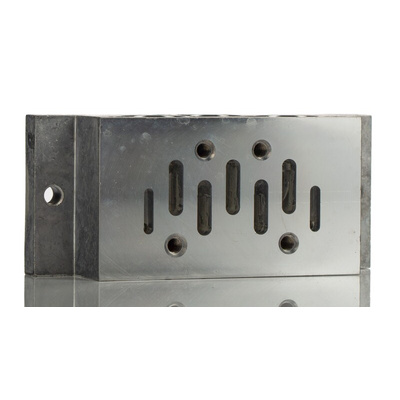

M/P19126, Norgren M/P191 series G 1/4 Sub Base

IMI Norgren Sub-Base, G1/4 Port Size, 16 Bar Maximum Operating Pressure - M/P191 Series - M/P19126

Link multiple pneumatic valves together with this sub-base from IMI Norgren. As it's made of robust die-cast aluminium, the unit can withstand mechanical impact and corrosion, making it suitable for use in harsh industrial environments. It has nitrile rubber seals that stop dust from getting in and pressurised media from leaking out, ensuring optimal performance. G1/4 thread ports mean you can easily screw solenoid or pilot valves to this unit, eliminating the need for specialist tools and saving on installation time.

Features & Benefits

• Maximum operating pressure of 16 bar for heavy-duty applications
• Compact dimensions of 110 (length) x 25 (width) x 50mm (depth) for installation in setups with limited space
• Wide operating temperature range of -15°C to +80°C for use in challenging conditions
• Teflon coated spool and sleeve for reduced friction and reliable long-term performance

Applications

• Robotics and automation systems
• Object rejection devices

What's the flow rate of this sub-base?

This sub-base is an ISO#1 type, which means that it can operate at a flow rate of up to 1230L/min, so it's suitable for high-speed applications.
