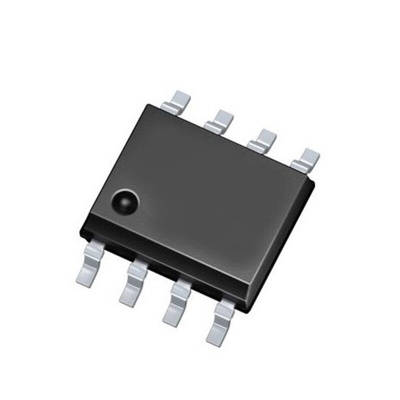

Renesas Electronics ISL83072EIBZA-T Line Transceiver, 8-Pin SOIC

The Renesas Electronics are Bi CMOS 3.3V powered, full fail-safe, Low Power, High Speed or Slew Rate limited ,single transceiver that meet both the RS-485 and RS-422 standards for balanced communication. these devices have very low bus current and it is allows up to 256 transceiver on the network. For example, in a remote utility meter reading system, individual meter readings are routed to a concentrator on network, high allowed node count. in this hot plug circuitry ensures that the Tx and Rx outputs remain in a high impedance state while the power supply stabilizes.

RS-485 I/O pin ESD protection
Full fail-safe receivers
True 1/8 Unit load allows up to 256 devices on the bus
Single 3.3V supply
High data rates up to 20Mbps
Low quiescent supply current
-7V to +12V common mode Input/output voltage range
Half and full duplex pinout
Three state Rx and Tx outputs available
Current limiting and thermal shutdown for driver overload protection

Datasheet - 175
