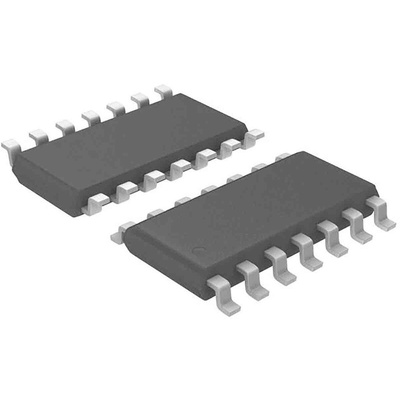

Renesas Electronics ISL83086EIBZ-T Line Transceiver, 14-Pin SOIC

The Renesas Electronics are Bi CMOS 3.3V powered, ±15kV ESD, 5V, Full Fail-Safe, 1/8 Unit Load, single transceiver that meet both the RS-485 and RS-422 standard for balanced communication. these devices have very low bus current and it allows up to 256 transceiver on the network without violating the RS-485 specification, 32 unit load maximum and without using repeater. Slew rate limited versions also include receiver input for filtering to enhance noise immunity. Data for all meters is then read out from a single access port or a wireless link. receiver (Rx) inputs feature a “full fail-safe” design, which ensures a logic high Rx output.

RS-485 I/O pin ESD protection
Full fail-safe receivers
Hot plug -Tx and Rx outputs remain three-state during power up
Single 3.3V supply
High data rates up to 20Mbps
Low quiescent supply current
-7V to +12V common mode Input/output voltage range
Half and full duplex pinout
Three state Rx and Tx outputs available
Current limiting and thermal shutdown for driver overload protection
