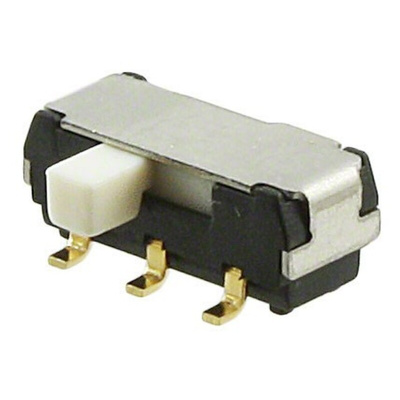

Copal Electronics CL-SB-22B-12 is a DPDT 2-position slide switch having DC current rating of 2000mA. The contact material is Copper whereas the contact finish is Gold. Its polyamide (PA),nylon actuator is 2mm in length. It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. CL-SB-22B-12 DPDT slide switch adopted twin-contact mechanism. These switches are ROHS compliant. CL-SB-22B-12 DPDT slide switches consists of 500 pieces per reel which weighs 5 grams.
On-On switch function with 10,000 electrical life cycles with an operating force of 153gf
Standardization of the silver as well as gold contacts
Uses a heat-resistant resin to support reflow soldering mounting
The minimum insulation resistance is 100MΩ and maximum contact resistance is 50mΩ
Switch Travel Time is 200mm
Datasheet - CL-SB-22B-12| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
