IS 11001, Sifam Tinsley Analogue Panel Ammeter 100μA DC, 32.3mm x 73.7mm, ±1.5 % Moving Coil, Амперметр

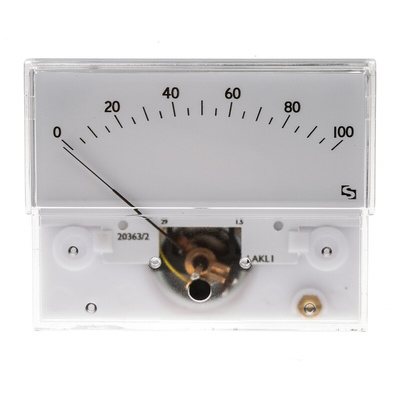

Sifam Tinsley Analogue Panel Ammeter

The Sifam Tinsley analogue panel ammeter measures the maximum current of 100μA. It also measures the accuracy of ±1.5%. There is no calibration effect when mounted on ferrous panel. It has a stronger suspension option for portable applications.

Features and Benefits

Cut-out height is 32.3mm
Cut-out width is 73.7mm
Depth is 38.7mm
Constructed with transparent acrylic front and high impact translucent rear body moulding
Masks and bezels, moulded in black ABS
Modern, flexible styling
Operating temperature ranging between -25°C and 55°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS89
EN60051
IEC51

Presentor Meter Range Product Data

Sifam Analogue Panel Ammeters Selection Table
