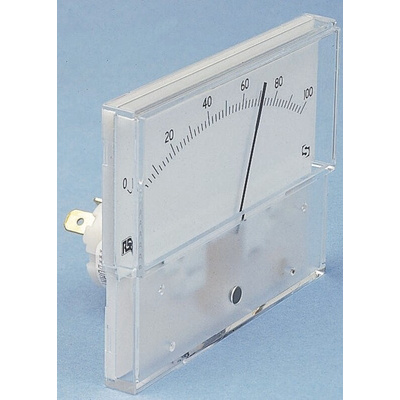

IS 11020, Sifam Tinsley Analogue Panel Ammeter 100μA DC, 55.5mm x 121mm, ±1.5 % Moving Coil, Амперметр

Presentor Range DC Meters

Electrical connections via 6mm tag terminals
Accuracy classes BS89; IEC51 and EN60051
Operating temperature range –25 to +55°C
Front mounting panel cut-out 27mm diameter in maximum panel thickness of 4mm
Rear mounting panel cut-outs (with bezel) in a maximum panel thickness of 6mm
Fixing stud sizes: M2 x 10.0mm (for 43.9 x37.9mm), M2.5 x 10.0mm (for other sizes)

Standards

BS89, IEC51, EN60051

Moving Coil DC Meters

Presentor Meter Range Product Data

Sifam Analogue Panel Ammeters Selection Table
