BL64-601, Norgren G 3/4 FRL, Automatic Drain, 40μm Filtration Size - With Pressure Gauge, Сборка

Norgren BL64 Series - Filter Regulator and Lubricator

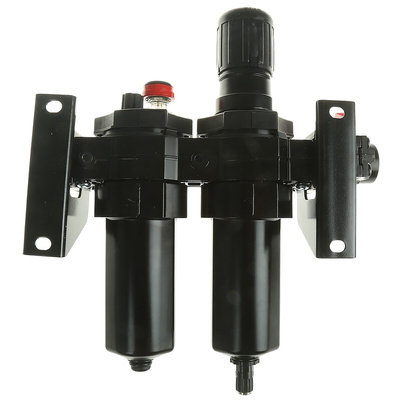

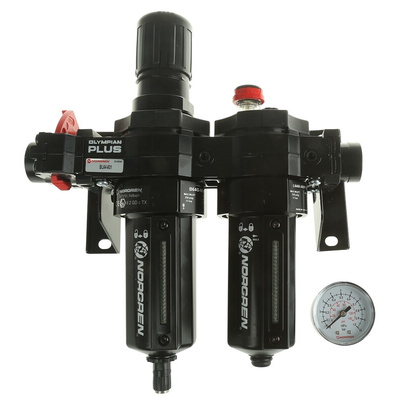

Introducing the BL64 series filter, regulator and lubricator from Norgren, fitted with quick-release bayonet bowls, making the device easy to maintain. This Olympian design combination is ready to install into your pneumatic installations, eliminating the need for interconnecting unions and pipes as it is fully assembled and ready to fit.

Features and Benefits

• Complete air processing units that are pre-assembled and ready to install straight from the box
• The regulator has a micro fog lubricator to ensure the best lubrication
• 40μm Polypropylene filter element
• Complete with gauge and brackets
• Manual or automatic drain
• The lubricator has a 0.2 litre bowl size
• Compressed air medium

Caution

Before commencing any maintenance, shut off the air supply and exhaust the downstream pressure. This can be done with an exhaust type ball valve.

BL64-601

• G3/4 port size
• Automatic drain
• Bracket mounting
• The model comes with a shut-off valve
• Pressure range of 0.3 - 10 bar

Datasheet - BL64
