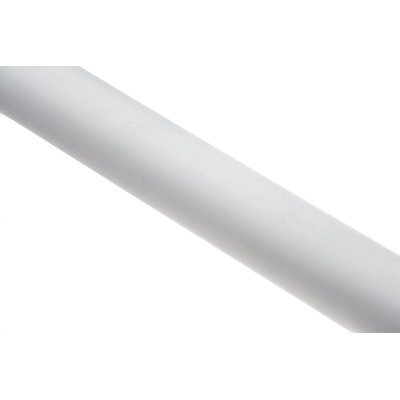

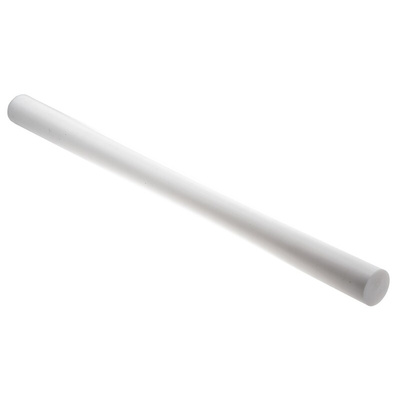

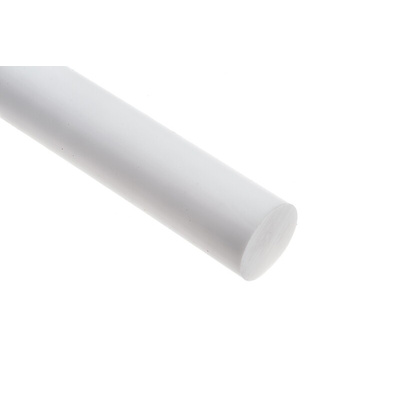

RS PRO Opaque Fluoroplastics PTFE Rod, 500mm x 40mm Diameter, Стержень

RS PRO Opaque Fluoroplastics PTFE Rod, 500 mm x 40 mm Diameter

This opaque fluoroplastics PTFE (polytetrafluoroethylene) rod from RS PRO measures 500 mm in length and 40 mm in diameter. It's useful for many chemical and engineering applications.

Thanks to its PTFE construction, the rod can withstand exposure to chemicals and radiation. It's also low-friction and low-adhesion and has excellent dielectric properties, making it a good choice for insulation. You can safely use it at temperatures of up to +260°C, and it's rated as flame-retardant according to international science safety company Underwriters Laboratories standard UL 94 V-0. It also meets standards for plastic and elastomer testing according to the German Institute for Standardization (Deutsches Institut für Nurmung, DIN) and the American Society for Testing and Materials (ASTM).

This fluoroplastics PTFE rod is useful for applications such as machining custom components, as well as high-frequency insulation, etching plates and slide bearings.

Features and Benefits

• Fluoroplastics PTFE (polytetrafluoroethylene) rod
• Opaque in colour
• Length of 500 mm
• Diameter of 40 mm
• Elongation of 50%
• Density of 2.18 → 2.21 g/cm³
• Tensile strength of 25 MPa
• Hardness of 30 Ball Indentation
• Maximum operating temperature of +260°C
• Melting point of +327°C
• Thermal conductivity of 0.25 W/mK
• Water absorption 0.3%
• UL 94 V-0 flammability rating means flames are extinguished within 10 seconds
• Conforms to DIN 53479, DIN 53736 and ASTM-D 1929 for testing of plastics and elastomers

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

The PTFE sheets supplied have a size tolerance of ±5 mm

Standards

DIN 53479; DIN 53736; ASTM-D 1929
