RS PRO Opaque Fluoroplastics PTFE Rod, 500mm x 50mm Diameter, Стержень

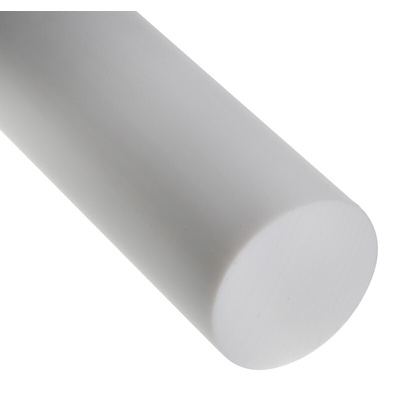

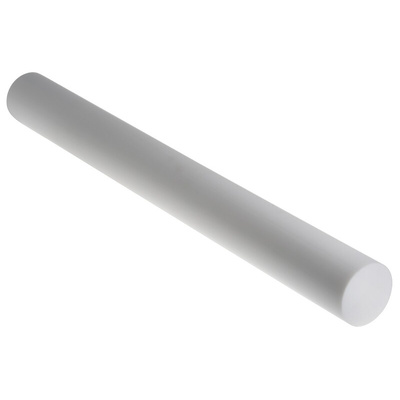

RS PRO Opaque Fluoroplastics PTFE Rod, 500 mm x 50 mm Diameter

This opaque fluoroplastics extruded rod is made from PTFE (polytetrafluoroethylene). It's suitable for use in chemical, engineering and mechanical applications. As part of the RS PRO range, it meets our high-quality standards.

The rod’s PTFE construction gives it extremely high chemical resistance. High-temperature tolerance means it can operate at temperatures up to +260°C. It also has a high tensile strength of 25 MPa. The rod is low friction and low adhesion and has excellent dielectric properties. As it's resistant to radiation, it’s suitable for use in many challenging work environments.

The fluoroplastic PTFE rod is manufactured to DIN 53479, DIN 53736 and ASTM-D 1929 standards for plastic and elastomer testing. It has a flammability rating of UL 94 V-0 and a melting point of +327°C. Measuring 500 mm long and with a 50 mm diameter, the rod is used for machining custom components in many engineering environments.

Features and Benefits

• Made from PTFE (Polytetrafluoroethylene)
• Come in lengths of 500 mm
• Diameter of 50 mm
• Elongation of 50%
• Density 2.18 → 2.21 g/cm³
• Tensile strength 25 MPa
• Hardness 30 Ball Indentation
• Maximum operating temperature of +230°C
• Melting Point of +327°C
• UL 94 V-0 flammability rating
• Thermal conductivity 0.25 W/mK
• Water absorption 0.3%
• Conforms to DIN 53479, DIN 53736 and ASTM-D 1929 for testing of plastics and elastomers

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

The PTFE sheets supplied have a size tolerance of ±5 mm

Standards

DIN 53479; DIN 53736; ASTM-D 1929
