RS PRO Opaque Fluoroplastics PTFE Rod, 300mm x 70mm Diameter, Стержень

RS PRO Opaque Fluoroplastics PTFE Rod, 300 mm x 70 mm Diameter

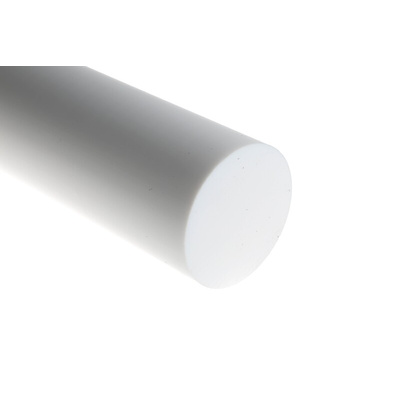

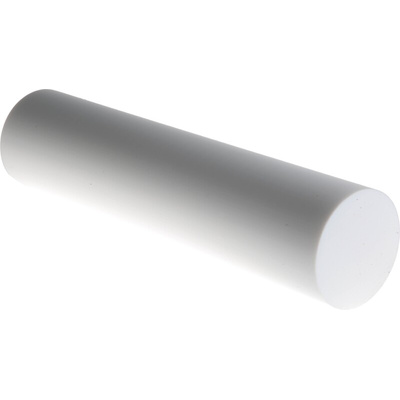

This opaque fluoroplastics PTFE (polytetrafluoroethylene) rod measures 300 mm in length and 70 mm in diameter. It's useful for insulation, chemical and mechanical applications.

Thanks to its PTFE construction, this rod is resistant to chemicals and radiation and holds up under harsh operating conditions. It has excellent dielectric properties, so it's a good insulator, and it's safe for use at temperatures up to +260°C. It has a high tensile strength of 25 MPa and is low-friction and low-adhesion.

Part of the RS PRO series, this product is tested for safety and quality. It meets the standards of the DIN (Deutsches Institut für Nurmung, German Institute for Standardisation) and the ASTM (American Society for Testing and Materials) for plastic and elastomer testing. It also has a flammability rating of UL 94 V-0 from Underwriters Laboratories.

You'll find this fluoroplastics PTFE rod suitable for applications such as high-frequency insulation and pipe lining.

Features and Benefits

• Fluoroplastics PTFE (polytetrafluoroethylene) rod
• Opaque in colour
• Length of 300 mm
• Diameter of 70 mm
• Elongation of 50%
• Density of 2.18 → 2.21 g/cm³
• Tensile strength of 25 MPa
• Hardness of 30 Ball Indentation
• Maximum operating temperature of +260°C
• Melting point of +327°C
• Thermal conductivity of 0.25 W/mK
• Water absorption of 0.3%
• UL 94 V-0 flammability rating
• Conforms to DIN 53479, DIN 53736 and ASTM-D 1929 for testing of plastics and elastomers

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

The PTFE sheets supplied have a size tolerance of ±5 mm

Standards

DIN 53479; DIN 53736; ASTM-D 1929
