RS PRO Opaque Fluoroplastics PTFE Rod, 300mm x 80mm Diameter, Стержень

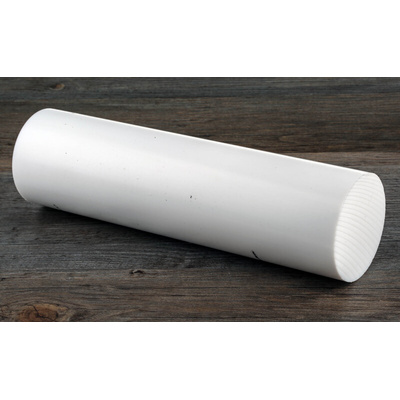

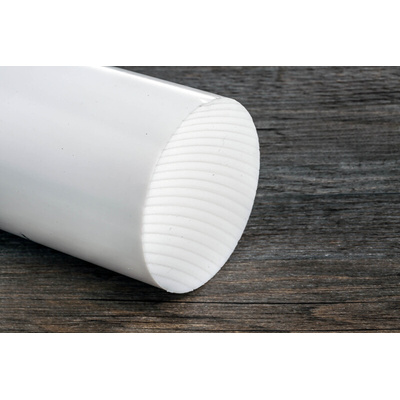

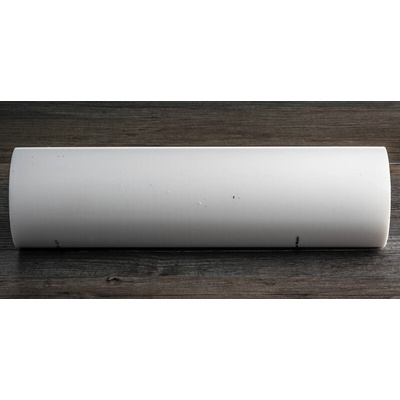

RS PRO Opaque Fluoroplastics PTFE Rod, 300 mm x 80 mm Diameter

If you need a rod that offers good insulation and withstands use in chemical applications, turn to this fluoroplastics PTFE (polytetrafluoroethylene) rod from RS PRO. It measures 300 mm in length and 80 mm in diameter.

The low-friction and low-adhesion rod has high tensile strength and excellent dielectric properties, making it a good insulator. Its PTFE construction means it's resistant to chemicals and radiation. It can withstand temperatures of up to +260°C and has a flammability rating of UL 94 V-0 from the science safety company Underwriters Laboratories. This means it self-extinguishes flames within 10 seconds. The rod also meets standards for plastic and elastomer testing from the DIN (Deutsches Institut für Nurmung, German Institute for Standardization) and the ASTM (American Society for Testing and Materials).

This fluoroplastics PTFE rod is useful for applications such as high-frequency insulation and machining custom components.

Features and Benefits

• Fluoroplastics PTFE (polytetrafluoroethylene) rod
• Opaque in colour
• Length of 300 mm
• Diameter of 80 mm
• Elongation of 50%
• Density of 2.18 → 2.21 g/cm³
• Tensile strength of 25 MPa
• Hardness of 30 Ball Indentation
• Maximum operating temperature of +260°C
• Melting point of +327°C
• Thermal conductivity of 0.25 W/mK
• Water absorption of 0.3%
• UL 94 V-0 flammability rating
• Conforms to DIN 53479, DIN 53736 and ASTM-D 1929 for testing of plastics and elastomers

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

The PTFE sheets supplied have a size tolerance of ±5 mm

Standards

DIN 53479; DIN 53736; ASTM-D 1929
