RS PRO Opaque Fluoroplastics PTFE Rod, 300mm x 100mm Diameter, Стержень

RS PRO Opaque Fluoroplastics PTFE Rod, 300 mm x 100 mm Diameter

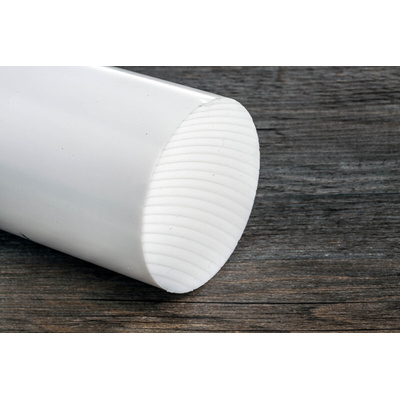

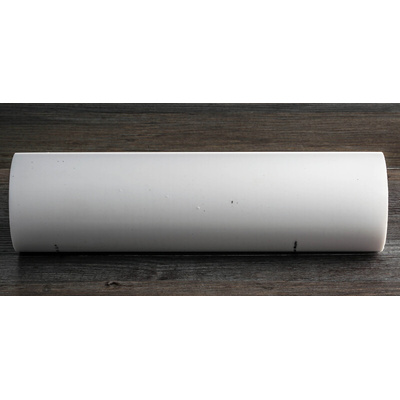

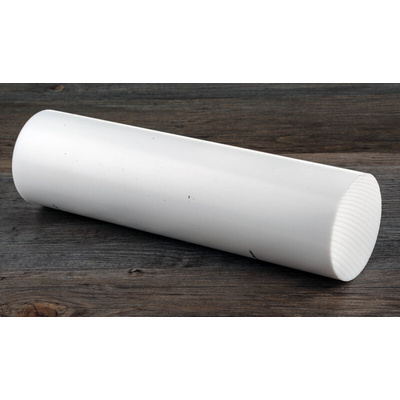

This opaque fluoroplastics PTFE (polytetrafluoroethylene) rod is a durable solution for chemical and engineering applications. It measures 300 mm in length and 100 mm in diameter.

The rod's PTFE material means it's chemical-resistant and radiation-resistant. It has excellent dielectric properties for effective insulation and is suitable for use at temperatures up to +260°C. With a high tensile strength of 25 MPa, low friction and low adhesion, it's a good choice for harsh environments.

Part of the RS PRO range, this product has been tested for quality and safety. It meets the standards of the DIN (Deutsches Institut für Nurmung, German Institute for Standardisation) and the ASTM (American Society for Testing and Materials) for plastic and elastomer testing. A flammability rating of UL 94 V-0 from Underwriters Laboratories means it will self-extinguish within 10 seconds.

You'll find this fluoroplastics PTFE rod useful for high-frequency insulation, pipe linings and pump housings.

Features and Benefits

• Fluoroplastics PTFE (polytetrafluoroethylene) rod
• Opaque in colour
• Length of 300 mm
• Diameter of 100 mm
• Elongation of 50%
• Density of 2.18 → 2.21 g/cm³
• Tensile strength of 25 MPa
• Hardness of 30 Ball Indentation
• Maximum operating temperature of +260°C
• Melting point of +327°C
• Thermal conductivity of 0.25 W/mK
• Water absorption of 0.3%
• UL 94 V-0 flammability rating
• Conforms to DIN 53479, DIN 53736 and ASTM-D 1929 for testing of plastics and elastomers

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

The PTFE sheets supplied have a size tolerance of ±5 mm

Standards

DIN 53479; DIN 53736; ASTM-D 1929
