3842548834, Bosch Rexroth PP Variofix Block, MGE, 10mm Slot, 30 mm, 40 mm, 45 mm, 50 mm, 60 mm Strut Profile

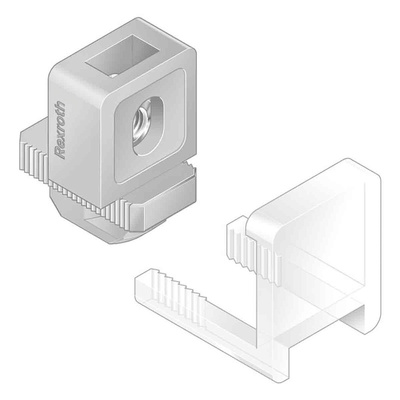

Bosch Rexroth Variofix Block, Asymmetrical Form, PP Material - 3842548834

Want to add extra elements to a pre-built structure? Boost your build with this variofix block from Bosch Rexroth. The handy component lets you easily fit a surface component into a frame with a closed construction, with no need to dismantle your setup. Thanks to its asymmetrical form, the block gives you the option of fastening components in two different positions.

• Compatible with surface elements up to 13mm thick, for versatility
• Light weight of 16g, so puts minimal strain on the mounting surface
• Supplied in a pack of 10 so you have plenty on hand

Applications

• Food and beverage manufacturing
• Warehouses and distribution centres
• Breweries

The Bosch Rexroth Variofix Blocks have been designed to insert surface elements of various sizes into profile frames already integrated into a system.

What fasteners do I need to mount this variofix block?

For surface elements up to 13 mm thick
For subsequent installation in closed frame constructions
Asymmetrical form enables surface elements to be fastened in two different positions
Clamping with snap-in clip or screw fitting with square nut M6 (included in scope of delivery) and screw
Retainer ring for connecting the screw and the surface element
Block material PP grey, snap-in clip material PA colourless
1251348 includes retainer ring for securing the screw to the surface element

The component comes with a screw and nut, which is all the kit you need for mounting, so you're good to go.
