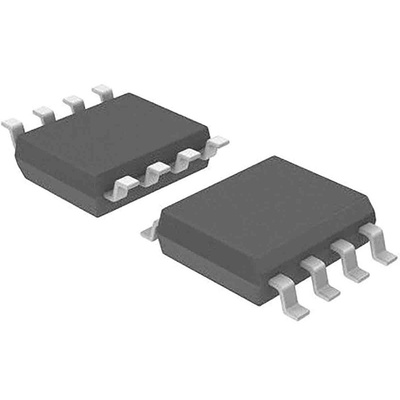

Renesas Electronics ICL7660CBAZ-T, 1 Charge Pump, Voltage Regulator 0.02A, 10 KHz 8-Pin, SOIC

The Renesas Electronics ICL7660 is a monolithic CMOS power supply circuit that offers unique performance advantages over previously available devices. The ICL7660 performs supply voltage conversions from positive to negative for an input range of +1.5V to +10.0V resulting in complementary output voltages of -1.5V to -10.0V. Only two noncritical external capacitors are needed for the charge pump and charge reservoir functions.

Simple Conversion of +5V Logic Supply to ±5V Supplies
Simple Voltage Multiplication (VOUT = (-) nVIN)
Typical Open Circuit Voltage Conversion Efficiency 99.9%
Typical Power Efficiency 98%
Wide Operating Voltage Range of 1.5V to 10.0V
No External Diode Over Full Temperature and Voltage Range
Pb-Free Plus Anneal Available (RoHS Compliant)

Datasheet - ICL7660CBAZ-T
