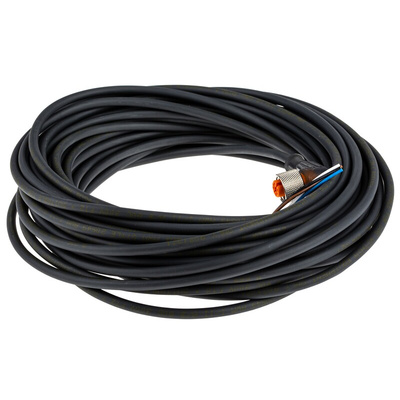

26409 RKWT 4-225/15 M, Lumberg Automation Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 15m

Belden Lumberg Automation Sensor Actuator Cable, 15m Length, 4 Cores - RKWT Series - 26409 RKWT 4-225/15 M

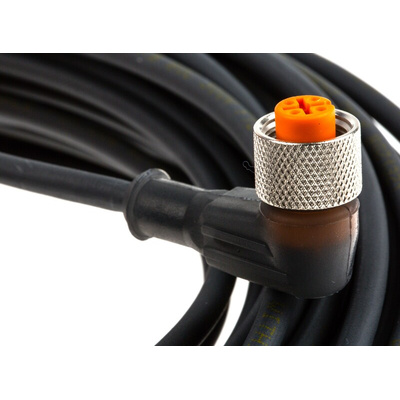

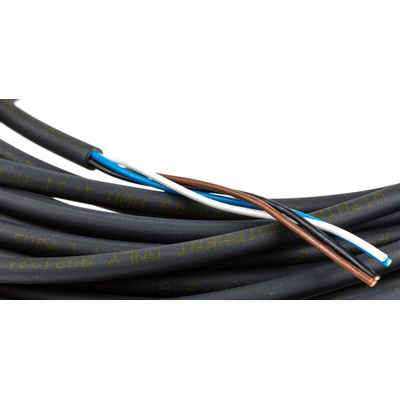

Use this sensor actuator cable from Belden Lumber Automation for digital signal communication between your process control devices and industrial machinery. Its right-angle M12 connector is designed for rear mounting to a sensor or actuator, while the unterminated end links to a connector of your choice. Simply strip the jacket and wrap the exposed cores around the connector's terminal contacts. The cable has four gold-plated copper cores to deliver reliable conductivity and prevent corrosion in damp or humid environments. A length of 15m makes this a practical choice for medium-sized setups.

Features & Benefits

• FKM (fluoro-elastomer) rubber O-ring insulates the electrical current and reduces power dissipation
• Thermoplastic polyurethane (TPU) cable sheath prevents damage due to rough handling
• IP69K (ingress protection) rating means the cable is dust-tight and resists high-pressure water sprays
• Flame-retardant behaviour keeps burning slow on a horizontal part to reduce damage

Applications

• Packaging conveyors
• Articulated robots
• Programmable automation
• Vehicle manufacturing
• Printing machinery

Is this sensor actuator cable suitable for use in extreme temperatures?

Yes, the cable has an operating temperature range between -40°C and +90°C, so you can use it safely in demanding environments.
