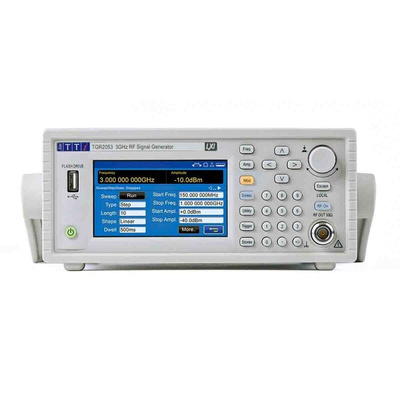

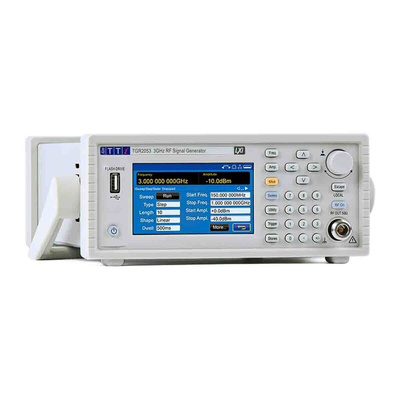

Aim-TTi TGR2051 RF Signal Generator, 150kHz min, 1.5GHz max

The TGR2051 and TGR2053 are the next generation of RF signal generators from Aim-TTi, offering both exceptional performance and new improved functionality with touch screen operation. The high performance RF generators provide high frequency accuracy and stability, large signal amplitude range, low phase noise and flexible analog and digital* modulation capabilities making it ideal for development, test and service work. Advanced remote control accommodates sophisticated new automated systems and compatibility with Aim-TTI's previous RF instruments enables incorporation into existing systems. With a small footprint and lightweight design and the best price point / performance ratio in its class, the TGR2050 series maintains Aim-TTi’s reputation for high quality, reliable, great value products.

• 150kHz to 3GHz (TGR2053) and 150kHz to 1.5GHz (TGR2051) frequency range


• High signal purity, phase noise <-117dBc/Hz (typical) at 1GHz output and 10kHz offset


• Amplitude range of -127dBm to +13dBm


• 0.1dBm amplitude setting resolution


• Internal or external analogue modulations (AM, FM, PM)


• Internal or external digital modulations - ASK, OOK, FSK, 3FSK, 4FSK, GFSK, MSK, GMSK, HMSK & PSK with U01 option


• Internal waveforms include: Sine, Square, Ramp, Triangle, PRBS (various lengths) and user-defined pattern

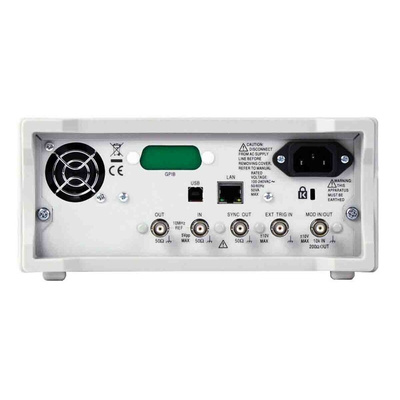

• Programmable via USB, LAN (LXI) and GPIB (optional), SCPI compatible


• 1ppm frequency accuracy, <1ppm drift in first year


• Simple operation with the colour touch screen
