160.700.75, Werma EvoSIGNAL Mini Series Electronic Sounder, 24 V, 95dB at 1 m, IP66, AC, DC, 2-Tone

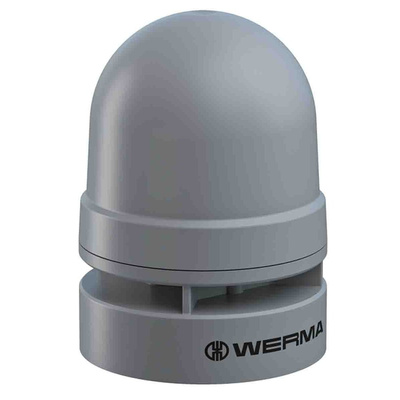

WERMA Mini Electronic Sounder, 2 Tones, 24V AC/DC - EvoSIGNAL Series - 160.700.75

Provide an audible warning signal with this mini electronic sounder from WERMA. It has a maximum volume of 95dB, which makes it loud enough to be heard above normal factory operating conditions. The unit is made from a durable thermoplastic material that's resistant to impact and wear for long-lasting use. A minimum acoustic service life of 5,000 hours means the sounder will last a long time.

Features & Benefits

• IP66 (ingress protection) rating means it's protected against dust and high-pressure water jets
• Choice of continuous or pulse tone for versatile signalling
• Low operational current of 40mA means it's energy-efficient
• Wide operating temperature range of -30°C to +60°C for use in demanding conditions
• Push-in terminal connections for ease of installation

Applications

• Public buildings
• Mining and minerals processing
• Food and beverage industry

How much mounting space does this electronic sounder need?

This sounder needs a minimal amount of space for installation thanks to its compact dimensions of 62 (diameter) x 85mm (height). This makes it a good choice for mounting in areas where space is limited.
