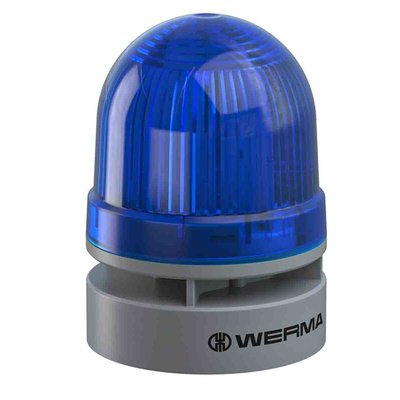

460.510.75, Werma EvoSIGNAL Mini Series Blue Sounder Beacon, 24 V dc, IP66, Base Mount, 95dB at 1 Metre

WERMA Blue LED Sounder Beacon, 95dB, Base Mount - EvoSIGNAL Mini Series - 460.510.75

This sounder beacon from WERMA's EvoSIGNAL Mini series is a cost-effective signalling solution. The robust ABS (acrylonitrile butadiene styrene) plastic housing contains a continuous or pulsing sounder that provides a 4kHz audible alarm at a sound level of up to 95dB. You can set the LED (light-emitting diode) to continuous or 1Hz blinking mode. The device is designed to be mounted to a panel or enclosure, and it has an IP66 (ingress protection) rating which means it's protected against dust and jets of water.

Features & Benefits

• Blue lens to indicate a change in status, such as equipment or machinery powering down, or to notify operators of a required action
• Low operating current of 98mA
• Push-in terminals allow easy connection of cables from 0.25 to 1.5mm² / 16 to 24AWG (American Wire Gauge)
• Operating temperature range of -30°C to +60°C means it can be used in challenging environments

Applications

• Clean rooms
• Food industry
• Logistics and shipping
• IT and networking
• Automated manufacturing

Can I use this beacon in tight spaces?

This compact sounder beacon is just 85mm high and has a diameter of 62mm, so it takes up very little space in your setup.

Note

Please note mounting base is not included. Please see instruction sheet for mounting bases that are suitable for this beacon.
