SFF86448PLT2, Startech Mini-SAS Adapter - Dual SFF-8643 to SFF-

SFF86448PLT2 Mini-SAS Adapter

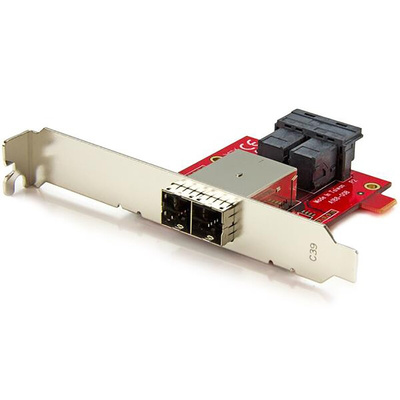

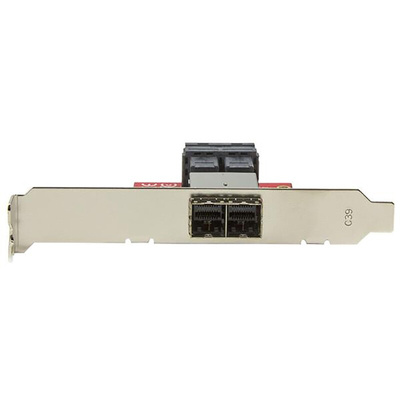

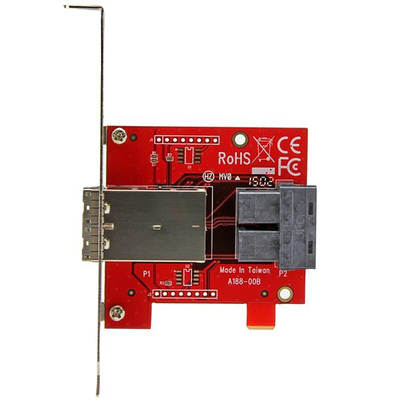

This Mini-SAS adapter lets you convert two internal SFF-8643 ports on a controller card into two external SFF-8644 ports. This enables you to connect external SAS or SATA drives in devices such as a Direct Attached Storage (DAS) device to an internal backplane or SAS controller for additional storage.

The adapter can connect up to eight drives in total and is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives. For a hassle-free installation, you can mount the adapter into any new or legacy desktop expansion slot, including: PCI, AGP, and PCIe. To ensure compatibility with most computer cases, full-profile and low-profile mounting brackets are included.

The SFF86448PLT2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Compatible with 12Gbps SAS drives and backward compatible with 6Gbps SAS and SATA drives
• Equipped with a full-profile bracket and includes a half-height/low-profile bracket for installation in small form-factor computers

Applications

• Convert two internal SFF-8643 ports into two external SFF-8644 ports
• Connect external SAS or SATA drives to an internal backplane or SAS controller

StarTech Mini-SAS adapter lets user convert two internal SFF-8643 ports on a controller card into two external SFF-8644 ports. This enables user to connect external SAS or SATA drives in devices such as a Direct Attached Storage (DAS) device to an internal backplane or SAS controller for additional storage. The adapter can connect up to eight drives in total and is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives

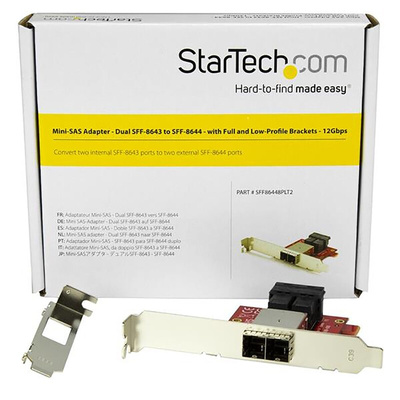

What’s in the package?

• dual SFF-8643 to SFF-8644 Mini-SAS HD adapter
• low-profile bracket

Datasheet - SFF86448PLT2
