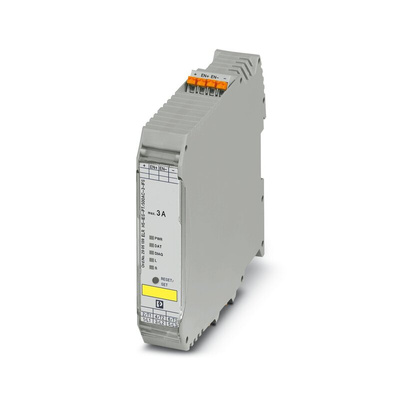

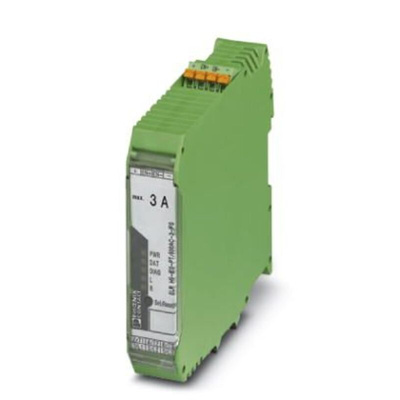

2905139, Phoenix Contact Motor Starter, Reversing Starter, 24 V dc, 3 Phase, IP20

Phoenix Contact Motor Starter, Reversing Type, Push-In Terminals - ELR H5-IES-PT/500AC-3-IFS - 2905139

Keep machines running like clockwork with this three-phase motor starter from Phoenix Contact. As a reversing device, it's able to control the start and direction of motors. It has an insulated voltage rating of 500V AC and is approved for AC-53a and AC-51 use. That means it can handle the high-powered squirrel-cage, slightly inductive and inductive-free motors typically found driving pumps, conveyors and fans. Thanks to microprocessor-controlled semiconductor and relay technology, you can expect a long service life.
Adjustable overload shutdown, along with surge and reverse polarity protections, guards against electrical damage. The emergency stop function is designed to meet Safety Integrity Level 3, so you can be sure it works reliably. With an emergency trip time of

• Networkable for full integration with industrial systems
• LEDs make status, operating voltage and error detection a doddle
• Flame retardant to UL 94-V0 standards, ensuring vertical burning stops within 10 seconds
• Wide operating temperature range between -5°C and +60°C, to handle harsh conditions
• Accepts rigid and flexible conductors between 0.2 and 2.5mm² for wide compatibility

Datasheet 2905139

Application Sheet - CONTACTRON Hybrid Motor Starters

Line Drawing - 2905139
