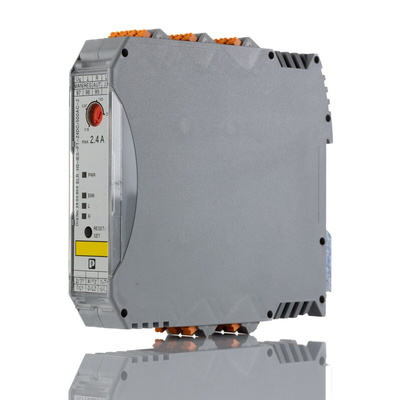

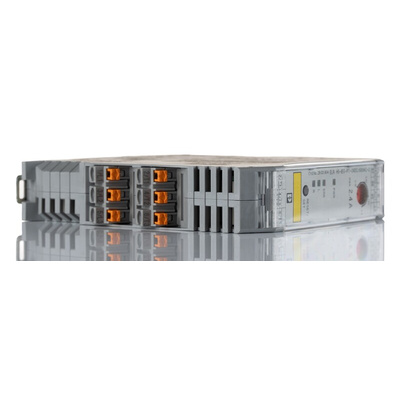

2903904, Phoenix Contact Motor Starter, Reversing, 24 V dc, 3 Phase, IP20

Phoenix Contact Motor Starter, DIN Rail Mounting, 24V DC Voltage Rating - ELR H5-IES-PT- 24DC/500AC-2 - 2903904

Keep your power applications moving with this motor starter from Phoenix Contact. It's a hybrid unit designed to run three-phase AC motors in forward and reverse, so it's a smart choice for conveyor belts or other production line machinery. It also includes an adjustable overload shutdown feature and emergency stop to protect your equipment against the risk of damage from abnormal loads.
As the unit has a reduced wiring design and is mounted on a standard DIN rail, installation is quick and hassle-free. Compact dimensions of 107.5 (H) x 22.5 (W) x 114mm (D) make it suitable for environments where space is at a premium. Its IP20 rating indicates that it's protected against accidental touch and dust, so it's safe to use in heavy industrial settings.

Features & Benefits

• Low-wear switching for a longer service life
• Wide operating temperature range of -25°C to +70°C, meaning it copes well in harsh environments
• LEDs provide information on voltage and operational status for easy monitoring at a glance
• Conforms to IEC 61508-1 standard for functional safety in electronic systems

Datasheet 2903904
