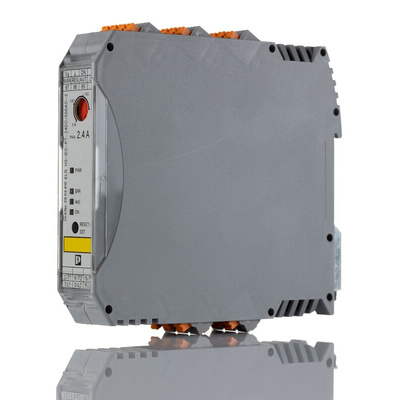

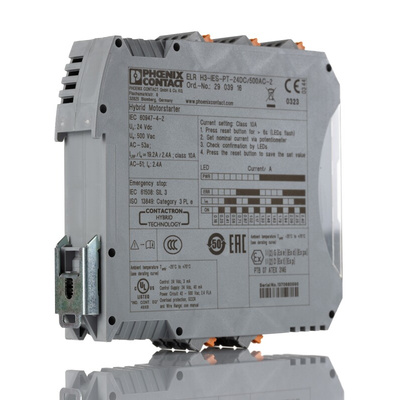

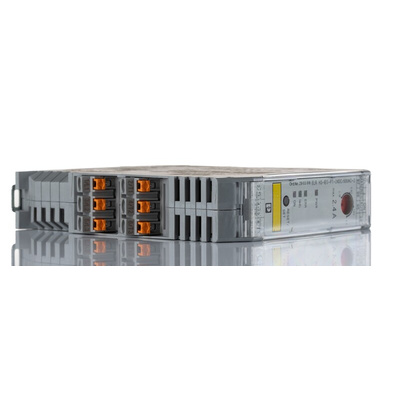

2903916, Phoenix Contact Motor Starter, DOL, 24 V dc, 3 Phase, IP20

Phoenix Contact Motor Starter, 24V DC Voltage Rating, IP20 Rating - ELR H3-IES-PT- 24DC/500AC-2 - 2903916

Get your system revved up and ready to go with this motor starter from Phoenix Contact. It's a handy device that's used to turn on and off three-phase AC motors up to 500V AC and 2.4 amps. Thanks to its compact dimensions of 114 (D) x 107.5 (L) x 22.5mm (W), the unit fits comfortably in confined spaces. A built-in emergency stop function supports quick and easy shutdown of equipment, so you can rest assured that safety is a top priority.
As the starter has secure push-in connectors, there's no risk of accidental disconnection, even when your setup vibrates. For a long service life, low-wear switching reduces the likelihood of component wear and tear, while bimetal function allows for adjustable current, providing added protection against overload. You'll find this piece of kit commonly used in control applications such as production lines and material handling systems.

Features & Benefits

• Wide operating temperature of -25°C to +70°C means it's suitable for use in challenging locations
• DIN rail mounting makes setup as easy as ABC
• IP20 rating indicates it's finger-safe and protected against objects larger than 12mm

Datasheet 2903916
