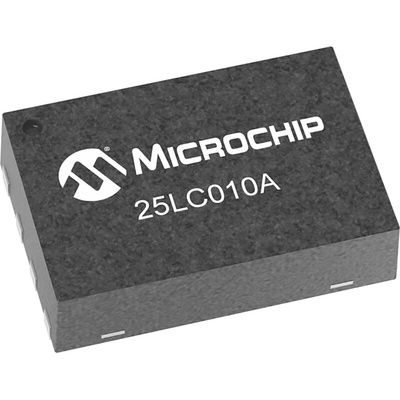

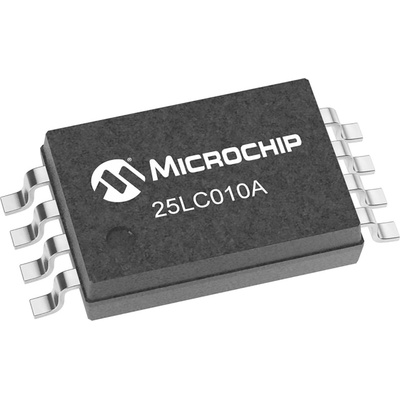

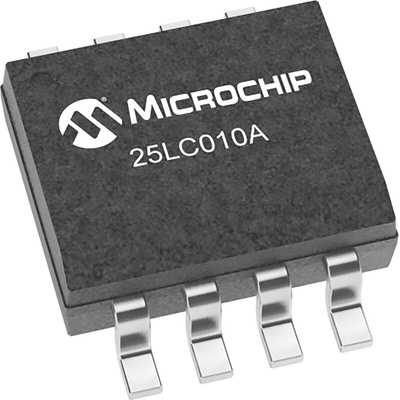

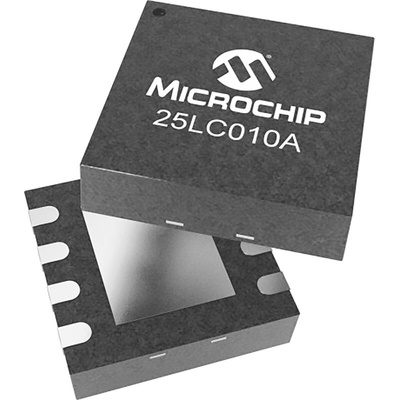

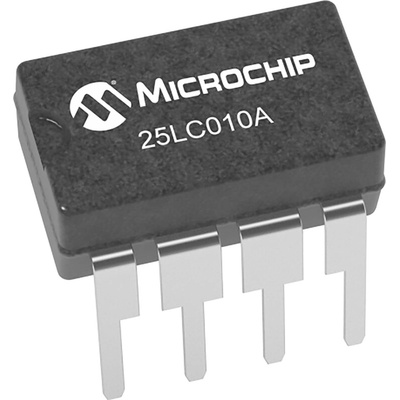

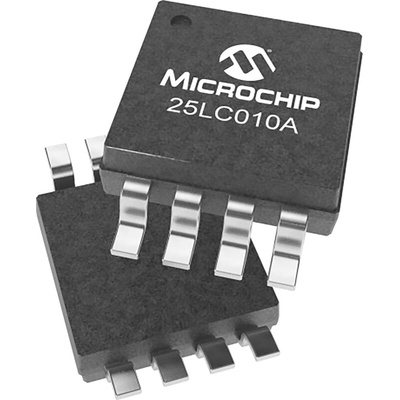

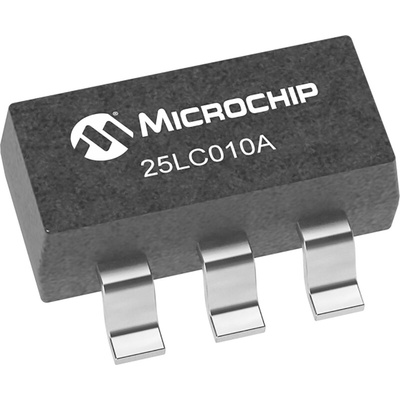

Microchip 25LC010A-I/MS, 1kbit EEPROM Memory, 50ns 8-Pin MSOP Serial-SPI, Память

Microchip 25LC010A-I/MS is a 1 Kbit Serial Electrically Erasable Programmable Read-Only Memory (EEPROM). The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS) input. Communication to the device can be paused via the hold pin (HOLD).

10 MHz max. Clock Frequency
Low-Power CMOS Technology: Max. Write Current: 5 mA at 5.5V, 10 MHz, Read Current: 5 mA at 5.5V, 10 MHz, Standby Current: 5 μA at 5.5V
Sequential Read
Self-Timed Erase and Write Cycles (5 ms max.)
Block Write Protection: Protect none, 1/4, 1/2 or all of array
Built-In Write Protection: Power-on/off data protection circuitry, Write enable latch, Write-protect pin
High Reliability: Endurance: 1,000,000 Erase/Write cycles, Data retention: > 200 years, ESD protection: > 4000V
Pb-Free and RoHS Compliant

Datasheet - 25LC010A
