Microchip 25LC640-I/P, 64kbit Serial EEPROM Memory, 230ns 8-Pin PDIP, SOIC, TSSOP Serial-SPI, Память

Microchip 25LC640-I/P is a 64 Kbit Serial Electrically Erasable PROM [EEPROM]. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS) input. Communication to the device can be paused via the hold pin (HOLD).

Low-Power CMOS Technology, Write current: 3 mA, typical, Read current: 500 μA, typical, Standby current: 500 nA, typical
8192 x 8 Bit Organization
Self-Timed Erase and Write Cycles
Block Write Protection, Protect none, 1/4, 1/2 or all of array
Built-in Write Protection, Power on/off data protection circuitry, Write enable latch, Write-protect pin
Sequential Read
High Reliability, Data retention: > 200 years, ESD protection: > 4000V

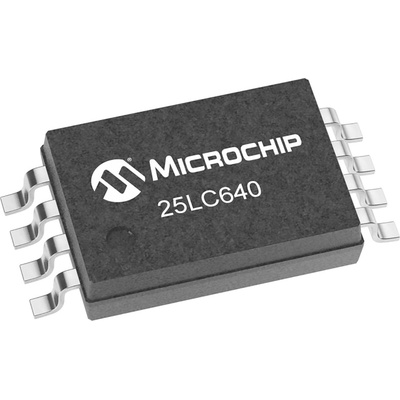

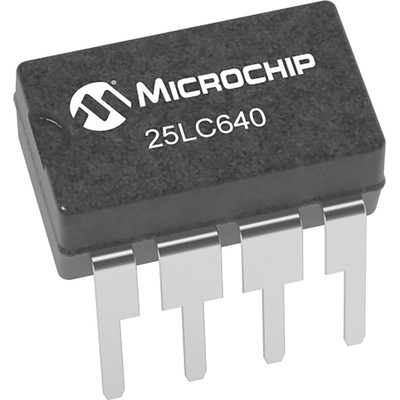

8-pin PDIP, SOIC and TSSOP Packages
Temperature Ranges Supported: Industrial (I): -40°C to +85°C, Automotive (E): -40°C to +125°C

Datasheet - 25LC640
