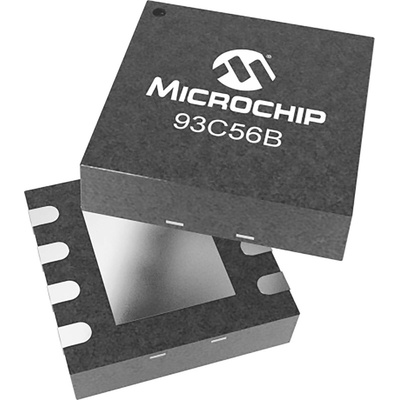

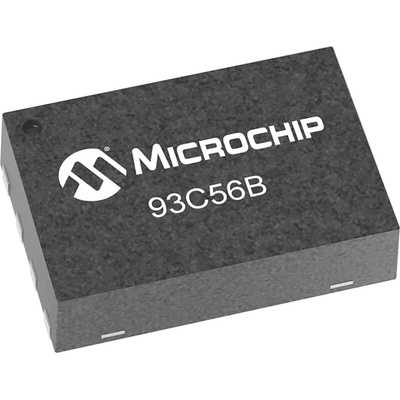

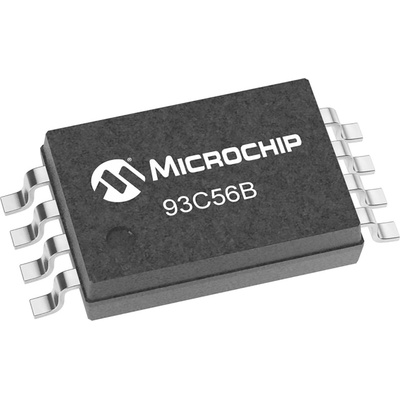

Microchip 93C56B-I/P, 2kbit Serial EEPROM Memory, 250ns 8-Pin DFN/TDFN, MSOP, PDIP, SOIC, SOT-23, TSSOP Serial-3 Wire, Память

Microchip 93C56B-I/P are 2Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Advanced CMOS technology makes these ideal for low-power, non-volatile memory applications. The entire 93C Series is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, 6-lead SOT-23, 8-lead 2x3 DFN/TDFN and 8-lead TSSOP. All packages are Pb-free Matte Tin finish.

Low-Power CMOS Technology
ORG Pin to Select Word Size for ’56C’ Version
256 x 8-bit Organization ’A’ Version (no ORG)
128 x 16-bit Organization ’B’ Version (no ORG)
Self-Timed Erase/Write Cycles (including Auto-Erase)
Automatic Erase All (ERAL) before Write All (WRAL)
Power-On/Off Data Protection Circuitry
Industry Standard 3-Wire Serial I/O
Device Status Signal (Ready/Busy)
Sequential Read Function
1,000,000 Erase/write Cycles
Data Retention > 200 Years
Pb-free and RoHS Compliant
Temperature Ranges Supported:- Industrial (I) -40°C to +85°C, Automotive (E) -40°C to +125°C

Datasheet - 93C56A
