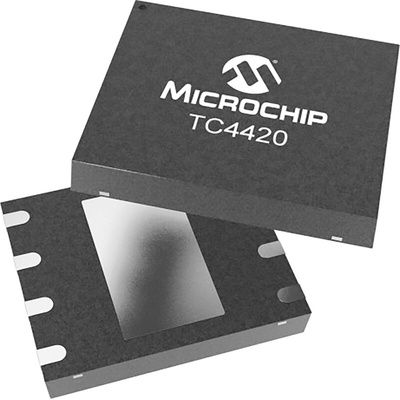

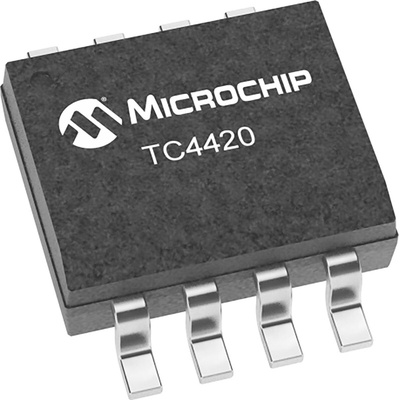

Microchip TC4420EPA, MOSFET 1, 1.5 A, 18V 8-Pin, PDIP

Microchip TC4420 are 6A (peak), single-output MOSFET drivers. TC4420 is a non-inverting driver. These drivers are fabricated in CMOS for lower power and more efficient operation versus bipolar drivers. They have TTL/CMOS compatible inputs that can be driven as high as VDD +0.3V or as low as -5V without any upset or damage, hence eliminates external level-shifting circuitry and associated cost & size. Output swing is rail-to-rail, ensuring better drive voltage margin, especially during power-up/power-down sequencing. Propagational delay time is only 55 ns (typ.) and output rise and fall times are only 25 ns (typ.) into 2500 pF across usable power supply range.

Latch-Up Protected: Will Withstand >1.5A Reverse Output Current
Logic Input Will Withstand Negative Swing Up To 5V
ESD Protected: 4 kV
Matched Rise and Fall Times: 25 ns (2500 pF load)
High Peak Output Current: 6A
High Capacitive Load Drive Capability: 10,000 pF
CMOS/TTL Compatible Input
Low Output Impedance: 2.5Ω

Datasheet - TC4420
