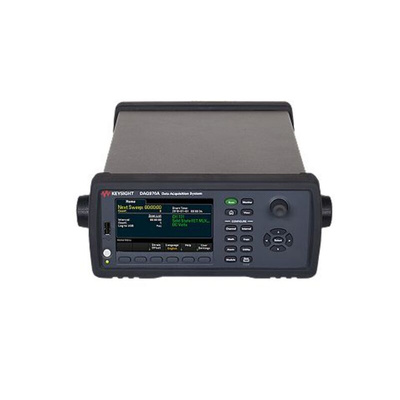

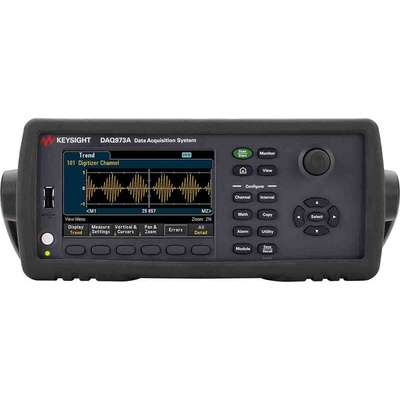

Keysight DAQ973A Data Acquisition System

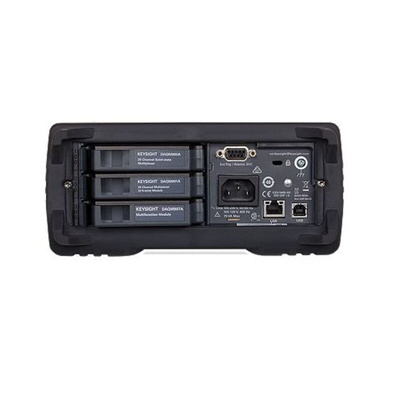

The Keysight DAQ973A is a next-generation data acquisition system with a 3-slot mainframe along with choice of 8 plug-in modules. It interfaces with the DAQ using Keysight BenchVue DAQ software, the intuitive graphical front panel with task oriented self-guiding menus or a web browser.

Features and Benefits:

3-slot mainframes with built-in 6 digit DMM
Basic 0.003% DCV accuracy
9 switch, RF and control plug-in modules, including a new 4-channel simultaneous sampling digitizer
Up to 450 channel/s scan rate
Up to 120 channels per system
Up to one million points scanning memory
Measures and converts 12 different input signals:
Temperature with thermocouple, RTDs and thermistor; dc/ac volts; 2- and 4-wire resistance;
frequency and period; dc/ac current and capacitance
Large 4.3” color display for ease of setup and viewing data
LAN and USB for easy connectivity to your PC (DAQ973A comes with additional GPIB)
Code compatible with the 34970A/34972A
USB flash drive support to copy/log data in standalone applications
BenchVue DAQ with enhanced time/frequency domain measurement included \n
