SKF Bearing Heater, 20 mm to 320 mm Bore Size - TWIM 15/110V

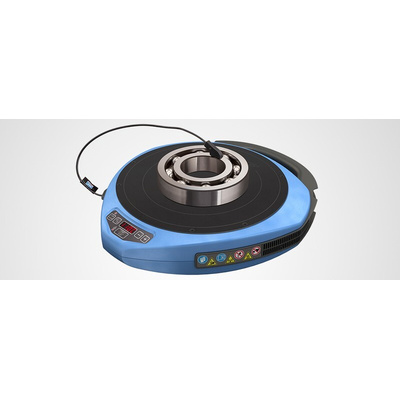

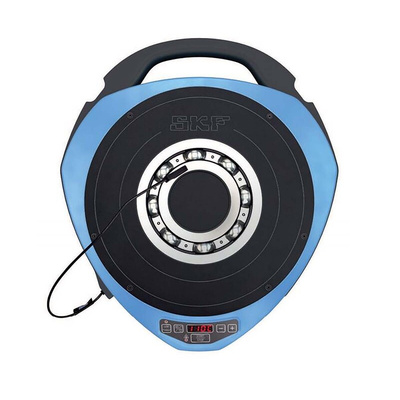

Want to fit roller bearings onto a shaft with ease? This portable induction heater from SKF will expand the bearings for you, meaning no force is required during installation. The lightweight piece of kit has a built-in handle for easy transport. Two power settings let you heat up sensitive components more slowly, avoiding the risk of structural damage. Place the bearing on the heater and its software will detect the size and position. The inner and outer rings are heated independently to reduce the risk of internal tensions.

•Portable and convenient heating of bearings
•Automatic temperature monitoring
•Maximum bore size of 320 mm
•Minimum bore size of 20 mm
•Supply voltage of 110 V
•Temperature control range of 20˚C to 200˚C
•Does not magnetise
•No support yokes required
•Detects bearing size and heats appropriately
•Two power levels and three power configurations
•User-friendly LED control panel
•Quiet operation

Application Information

•Machine assembly

When should I use this portable induction bearing heater?

Use this heater when you have a bearing sized between 20 mm and 320 mm, which you want to fit onto a shaft.
