SKF Bearing Heater 20mm To 320mm Bore Size TWIM 15/230V

SKF Bearing Heater, 20 mm to 320 mm Bore Size - TWIM 15/230V

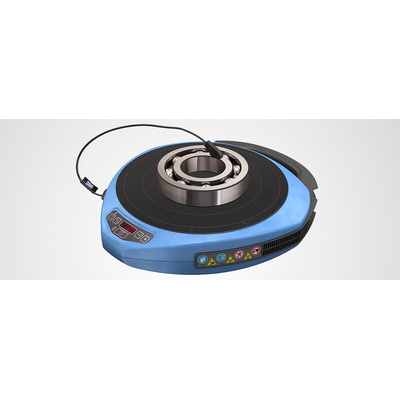

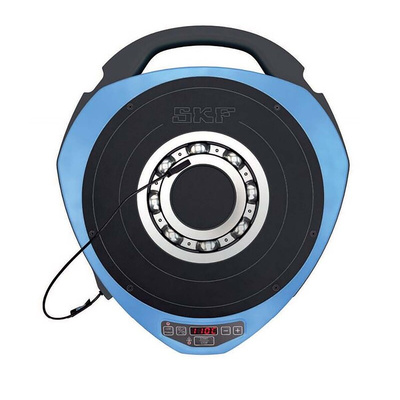

This portable induction heater from SKF can be used to heat up and expand roller bearings so that you can install them on a shaft with ease. The lightweight construction and a built-in handle make it simple to transport. Two power settings let you heat up sensitive components more slowly, avoiding the risk of structural damage. For convenience, the heater's software will detect the bearing's size and position. The inner and outer rings are heated independently, reducing the risk of internal tensions.

•Portable and convenient heating of bearings
•Automatic temperature monitoring
•Maximum bore size of 320 mm
•Minimum bore size of 20 mm
•Supply voltage of 230 V
•Temperature control range of 20˚C to 200˚C
•Does not magnetise
•No support yokes required
•Automatic temperature monitoring
•Detects bearing size and heats appropriately
•Two power levels and three power configurations
•User-friendly LED control panel
•Quiet operation

Application Information

•Machine assembly

When should I use this portable induction bearing heater?

Use this heater when fitting a bearing sized between 20 mm and 320 mm onto a shaft.

How do I use the heater?

Place the bearing on the heater, attach the magnetic temperature probe to the inner ring and press start. Protective gloves are essential for removing the heated bearing.
