RS PRO G 1/8 Regulator - 0bar to 12bar, 1/8in, 15bar max. input

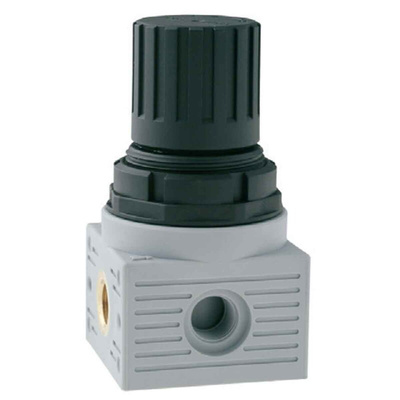

RS PRO Pneumatic Regulator 600 Nl/min, 0 to 12 bar

The pneumatic regulator from RS PRO is a compact and robust device used to reduce incoming air pressure and maintain outlet pressure with precision, despite possible fluctuations. The regulator features a robust and durable construction that is suitable for use in a wide range of industrial applications, offering highly accurate air pressure regulation regardless of the environment. RS PRO regulators are available with either a 1/4 or 1/8 port threads and offer a flow rate of 600 Nl/min and regulation up to 12 bar, ensuring air pressure is maintained efficiently and effectively.

Features and Benefits

• Suitable for a wide range of industrial applications


• Vertical assembly position


• Modularity


• Sharp and reliable regulation with precision


• High flow offering high efficiency


• Robust yet lightweight design


• Coalescing Filters


• Silicon Free

Applications

Regulators, also referred to as pressure regulators are devices used to regulate air and maintain a stable source of pressure for a wide range of process control equipment. High pressure enters the regulator through an inlet and into the valve chamber where an adjustable knob operates a spring to generate a force, causing the valve to open. This applies pressure to a piston that causes the valve to close until the required amount of pressure is maintained and regulated. Regulators are used in a wide range of devices and pneumatic equipment and are commonly found in areas such as:

• Industrial automation


• Medical


• Dental


• HVAC

Standards

REACH, RoHS, PED 2014/68/UE.

FAQs

Does this include a pressure gauge?

No this regulator does not include a pressure gauge.

What position can this be assembled?

RS PRO regulators are designed to be installed vertically.
